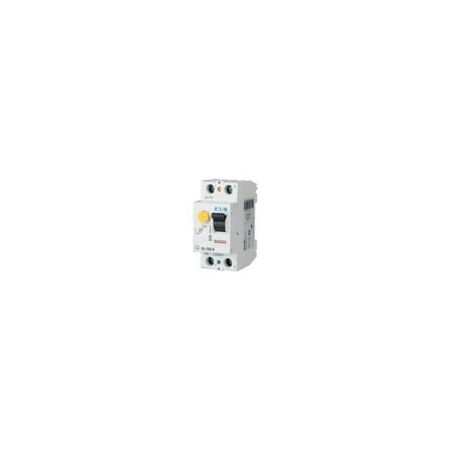

Residual Current Circuit Breaker 40A 2-Pole | 30mA Sensitivity | Non-Delayed Tripping | IP20 Protection by Eaton
Ensure electrical safety with this 40A 2-pole residual current circuit breaker, featuring 30mA sensitivity and non-delayed tripping for rapid fault response. Ideal for residential and commercial applications, it offers IP20 protection and complies with IEC/EN 61008 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Residual Current Circuit Breaker 40A 2-Pole | 30mA Sensitivity | Non-Delayed Tripping | IP20 Protection by Eaton
Brand: Eaton
SKU: Y7-235427
Alternatively Known As: Residual Current Device, RCD Type A, RCCB 40A 2p, Earth Leakage Circuit Breaker, xPole PFIM RCCB
Technical Specifications
- Rated current: 40 A
- Number of poles: 2
- Rated residual current: 30 mA
- Type: PFIM Residual current circuit breaker Type A
- Voltage rating: 230 V AC
- Rated insulation voltage: 440 V
- Rated impulse withstand voltage: 4 kV
- Frequency rating: 50 Hz
- Short-circuit rating: 63 A max admissible back-up fuse
- Tripping time: Non-delayed
- Terminal capacity (solid wire): 1.5 mm² - 35 mm²
- Terminal capacity (stranded cable): 16 mm² (2x)
- Degree of protection: IP20 (IP40 with enclosure)
- Mounting method: DIN rail quick attachment
- Mechanical lifespan: 20,000 operations
- Electrical lifespan: 4,000 operations
- Operating temperature range: -25 °C to 60 °C
- Dimensions (H x L x W): 80mm x 76mm x 35mm
- Weight: 0.193 kg
Key Features
- Residual current circuit breaker (RCCB) type A with pulse-current sensitivity
- Rated current 40 A, two-pole configuration
- Non-delayed tripping time for rapid fault response
- Rated short-circuit strength of 10 kA
- Rated residual making and breaking capacity of 500 A
- Open mouthed/lift terminals with finger and hand touch safety
- DIN rail quick attachment with 2 latch positions
- IP20 degree of protection (IP40 with suitable enclosure)
- Maximum operating temperature 60 °C with derating above 40 °C
- Mechanical lifespan of 20,000 operations and electrical lifespan of 4,000 operations
- Complies with IEC/EN 61008 and RoHS standards
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper device operation.
Applications
- Residential electrical safety
- Commercial electrical safety
- Switchgear for residential and commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy-efficient electrical system protection
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xPole PFIM Type A RCCB 40A 2p 30mA is available for immediate purchase, ideal for enhancing electrical safety in residential and commercial installations.
