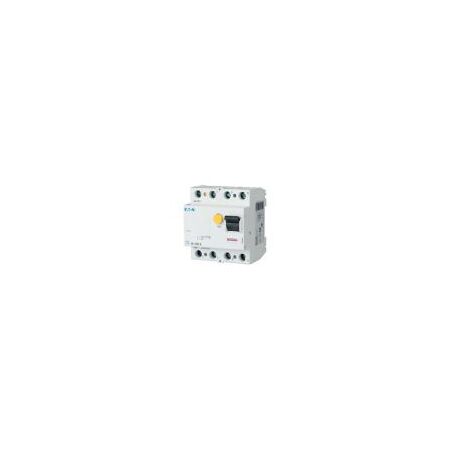

Residual Current Circuit Breaker 40A 4-Pole | Type A | Non-Delayed Tripping | IP20 by Eaton
Ensure electrical safety with this 40A 4-pole residual current circuit breaker, featuring Type A sensitivity and non-delayed tripping for rapid fault response. Ideal for residential and commercial 3-phase applications, it mounts easily on DIN rail and complies with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Residual Current Circuit Breaker 40A 4-Pole | Type A | Non-Delayed Tripping | IP20 by Eaton
Brand: Eaton
SKU: Y7-235439
Alternatively Known As: RCCB, Residual Current Device, Earth Leakage Circuit Breaker, Type A RCCB, 4-pole RCD
Technical Specifications
- Dimensions (H x L x W): 80mm x 76mm x 70mm
- Weight: 0.35 kg
Key Features
- Four-pole residual current circuit breaker with 40A rating
- Type A pulse-current sensitive for AC and pulsating DC residual currents
- Non-delayed tripping time for rapid fault response
- Rated short-circuit strength of 10 kA
- Open mouthed/lift terminals supporting 1.5 mm² to 35 mm² solid wires
- Finger and hand touch safe terminals compliant with DGUV VS3 and EN 50274
- Mounts on DIN rail with quick attachment and 2 latch positions
- IP20 degree of protection (IP40 with suitable enclosure)
- Mechanical lifespan of 20,000 operations and electrical lifespan of 4,000 operations
- Maximum operating temperature 60 °C with derating above 40 °C
- Interlocking device fitted and additional equipment possible
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and proper integration into electrical systems.
Applications
- Residential electrical safety systems
- Commercial electrical installations
- 3-phase electrical applications with neutral
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Enhances electrical safety reducing risk of electrical fires and faults
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller xPole PFIM Type A RCCB 40A 4P 30mA is available for immediate purchase, ideal for enhancing electrical safety in residential and commercial 3-phase installations.
