Residual Current Circuit Breaker 4P 40A 30mA | DIN Rail | IP20 by Clipsal
Residual current circuit breaker with 4 poles and 40A, 30mA sensitivity—ideal for residential and commercial safety. Built for enhanced protection, with DIN rail mounting and IP20 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

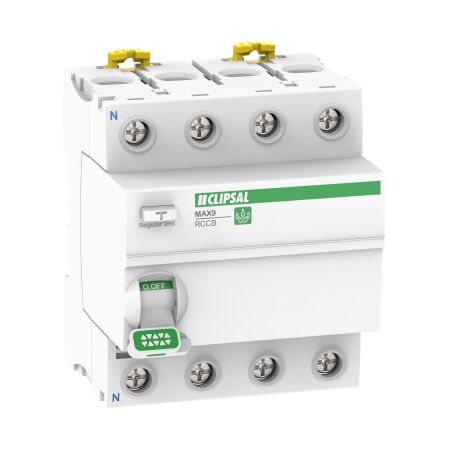

Product Name/Title: MAX9, Residual Current Circuit Breaker (RCCB), 4P, 40A, 30mA, A Type
Brand: Clipsal
SKU: MX9RC440
Alternatively Known As: RCCB, Residual Current Device, RCD, Circuit Breaker
Technical Specifications
- Rated operational voltage: 415 V
- Mechanical durability: 10,000 cycles
- Electrical durability: 4,000 cycles AC 50 Hz
- IP Rating: IP20
- Rated breaking capacity: 500 A at 415 V AC 50 Hz
- Rated insulation voltage: 440 V AC 50 Hz
- Rated impulse withstand voltage: 4 kV
- Surge current: 250 A
- Total power losses: 11.4 W
- Dimensions (H x L x W): 85mm x 75mm x 72mm
- Weight: 0.37 kg
Key Features
- 4 poles for enhanced protection
- Instantaneous earth-leakage protection
- Rated current of 40A and sensitivity of 30mA
- Toggle control type with ON/OFF indication
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Conforms to AS/NZS 61008.1 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and free from mercury.
Warranty Information
7 years warranty against manufacturing defects.
Available Now
The Clipsal MAX9 Residual Current Circuit Breaker (RCCB) is available now for immediate purchase. Ideal for residential and commercial electrical safety.
