Home/Electrical/Switchgear/Residual Current Devices/Residual Current Circuit Breaker 4P 63A | 30mA Sensitivity | DIN Rail Mount by Clipsal

Trade Discount 33%

MAX9, Residual Current Circuit Breaker (RCCB), 4P, 63A, 30mA, A Type

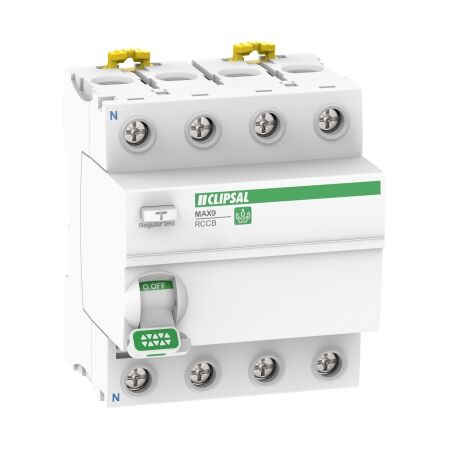

Residual Current Circuit Breaker 4P 63A | 30mA Sensitivity | DIN Rail Mount by Clipsal

BRAND: Clipsal

SKU: MX9RC463

$79.40 List price: $119.10

+ −

30 Days Return Delivery Options

Residual current circuit breaker with 4 poles and 63A rated current—ideal for residential and commercial safety. Built for enhanced protection, with 30mA sensitivity and easy DIN rail mounting.

Description
Attachments

Product Name/Title: MAX9, Residual Current Circuit Breaker (RCCB), 4P, 63A, 30mA, A Type

Brand: Clipsal

SKU: MX9RC463

Alternatively Known As: RCCB, Residual Current Device, RCD, Circuit Breaker

Technical Specifications

Rated operational voltage: 415V
Mechanical durability: 10,000 cycles
Electrical durability: 4,000 cycles AC 50 Hz
IP Rating: IP20
Rated breaking capacity: 630A at 415V AC 50Hz
Rated insulation voltage: 440V AC 50Hz
Rated impulse withstand voltage: 4kV
Surge current: 250A
Total power losses: 10.5W
Dimensions (H x L x W): 85mm x 75mm x 72mm
Weight: 0.37 kg

Key Features

4 poles for enhanced protection
Instantaneous earth-leakage protection
Rated current of 63A and sensitivity of 30mA
Toggle control type with ON/OFF indication
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Conforms to AS/NZS 61008.1 for safety and performance standards.

Environmental Benefits

Compliant with RoHS directives and mercury-free design.

Warranty Information

7 years warranty against manufacturing defects.

Available Now

The Clipsal MAX9 Residual Current Circuit Breaker (RCCB) is available now for immediate purchase. Ideal for residential and commercial electrical safety.

MX9RC463 (MX9RC463, 244 Kb) [Download]
