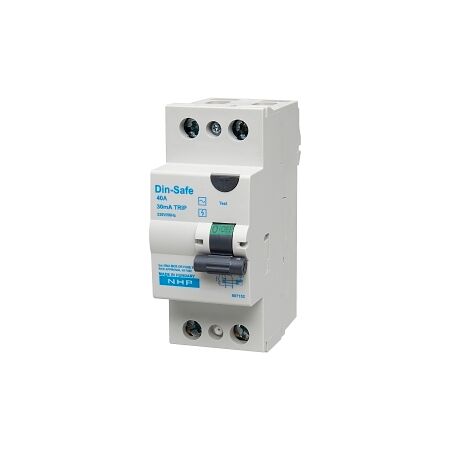

Residual Current Circuit Breaker RCCB 1P+N | 40A 30mA Type F | DIN Rail by NHP
Residual current circuit breaker with 1 pole plus neutral, 40A rated current, and 30mA leakage—ideal for residential, commercial, and industrial safety. Built for easy DIN rail installation, enhancing electrical protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole plus Neutral 40A 30mA Type F AEG Brand FPF
Brand: NHP
SKU: DSRCD24030F
Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD, Type F RCCB
Technical Specifications
- Number of Poles: 2
- Voltage Type: AC
- Frequency: 50/60 Hz
- Rated Current: 40 A
- Leakage Current Type: F
- Rated Leakage Current: 30 mA
- Min Service Voltage: 117 V
- Max Rated Operation Voltage: 415 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 8 kV
- Rated Fault Current: 10000 A
- Short Time Delayed Tripping: Yes
- Electrical Life at Un in Service Cycles: 10000 cycles
- Rated Voltage: 230 V
- Short Circuit Breaking Capacity: 1 kA
- Surge Current Capacity: 4 kA
- Degree of Protection: IP20
- Connectable Conductor Cross Section (Solid Core): 50-50 mm²
- Connectable Conductor Cross Section (Multi-Wired): 0-25 mm²
- Operating Temperature: 55 °C
- Ambient Temperature During Operating: -25-55 °C
- Storage Temperature: 70 °C
- Pollution Degree: 2
- Dimensions (H x L x W): 86mm x 76mm x 36mm
- Weight: 0.37 kg
Key Features
- 1 Pole plus Neutral configuration for effective leakage current protection.
- Rated current of 40A and leakage current of 30mA for safety.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole plus Neutral 40A 30mA Type F is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
