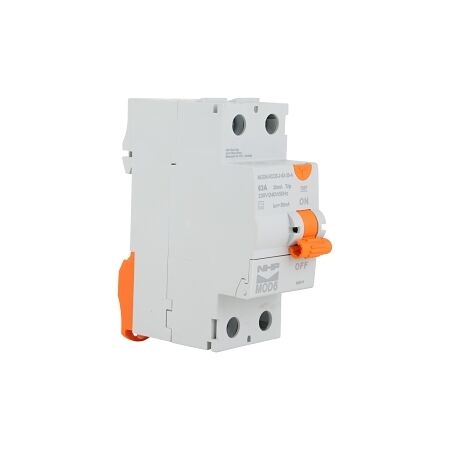

NHP MOD6 Residual Current Circuit Breaker RCCB 1PN 63A 30mA Type A

Residual Current Circuit Breaker RCCB 1PN 63A | 30mA Type A | DIN Rail Mount by NHP

BRAND: NHP

SKU: MOD6RCCB26330A

$52.30 List price: $69.50

+ −

30 Days Return Delivery Options

Residual current circuit breaker with 63A rated current and 30mA leakage—ideal for residential, commercial, and light industrial applications. Built for safety, with easy DIN rail mounting and IP20 protection.

Description
Attachments

Product Name/Title: NHP MOD6 Residual Current Circuit Breaker RCCB 1PN 63A 30mA Type A

Brand: NHP

SKU: MOD6RCCB26330A

Alternatively Known As: RCCB, Residual Current Device, RCD, Circuit Breaker

Technical Specifications

Number of Poles: 2
Voltage Type: AC
Frequency: 50/60 Hz
Rated Current: 63 A
Leakage Current Type: A
Rated Leakage Current: 30 mA
Min Service Voltage: 287 V
Max Rated Operation Voltage (UE AC): 455 V
Rated Insulation Voltage (UI): 500 V
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Fault Current: 6000 A
Electrical Life at Un in Service Cycles: 10000 cycles
Mounting Method: DIN rail
Degree of Protection: IP20
Connectable Conductor Cross Section (Solid Core): 35-35 mm²
Mechanical Life Service Cycles: 20000 cycles
Operating Temperature: 55 °C
Ambient Temperature During Operating: -25-55 °C
Storage Temperature: 70 °C
Pollution Degree: 2
Dimensions (H x L x W): 86mm x 76mm x 36mm
Weight: 0.25 kg

Key Features

Residual current protection with a rated current of 63A and leakage current of 30mA.
DIN rail mounting for easy installation.
IP20 rated for protection against solid objects.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring electrical safety

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP MOD6 Residual Current Circuit Breaker RCCB 1PN 63A 30mA Type A is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

Non-Returnable & Non-Cancellable

MOD6RCCB26330A-AU-RCCB-1P-and-N-36mm-Datasheet.pdf (MOD6RCCB26330A-AU-RCCB-1P-and-N-36mm-Datasheet.pdf, 419 Kb) [Download]
