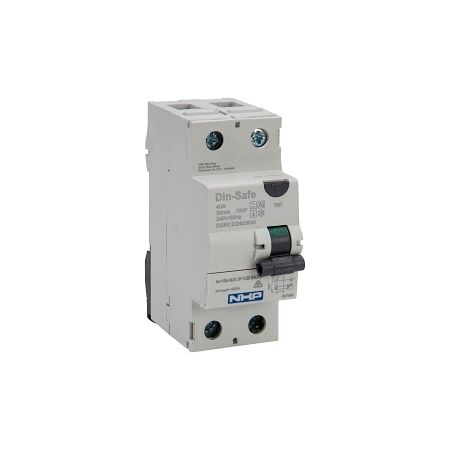

NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole and Neutral 40A 30mA Type A

Residual Current Circuit Breaker RCCB 40A 30mA | 1 Pole & Neutral | DIN Rail by NHP

BRAND: NHP

SKU: DSRCD24030A

$445.90 List price: $592.10

+ −

30 Days Return Delivery Options

Residual current circuit breaker with 40A rated current and 30mA leakage protection—ideal for residential and commercial safety. Built for easy installation on DIN rails, ensuring effective leakage current protection.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole and Neutral 40A 30mA Type A

Brand: NHP

SKU: DSRCD24030A

Alternatively Known As: RCCB, Residual Current Device, RCD, Circuit Breaker

Technical Specifications

Number of Poles: 2
Voltage Type: AC
Frequency: 50/60 Hz
Rated Current: 40 A
Leakage Current Type: A
Rated Leakage Current: 30 mA
Min Service Voltage: 117 V
Max Rated Operation Voltage (UE AC): 265 V
Rated Insulation Voltage (Ui): 440 V
Rated Impulse Withstand Voltage (Uimp): 8 kV
Rated Fault Current: 10000 A
Electrical Life at Un in Service Cycles: 10000 cycles
Degree of Protection: IP20
Connectable Conductor Cross Section (Solid Core): 50-50 mm²
Mechanical Life Service Cycles: 20000 cycles
Operating Temperature: 55 °C
Ambient Temperature During Operating: -25-55 °C
Storage Temperature: 70 °C
Pollution Degree: 2
Dimensions (H x L x W): 86mm x 76mm x 36mm
Weight: 0.25 kg

Key Features

1 Pole and Neutral configuration for effective leakage current protection.
Rated current of 40A and leakage current of 30mA for enhanced safety.
DIN rail mounting for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring electrical safety

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole and Neutral 40A 30mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DSRCD24030A-AU-RCCB-1P-and-N-36mm-Datasheet.pdf (DSRCD24030A-AU-RCCB-1P-and-N-36mm-Datasheet.pdf, 250 Kb) [Download]
