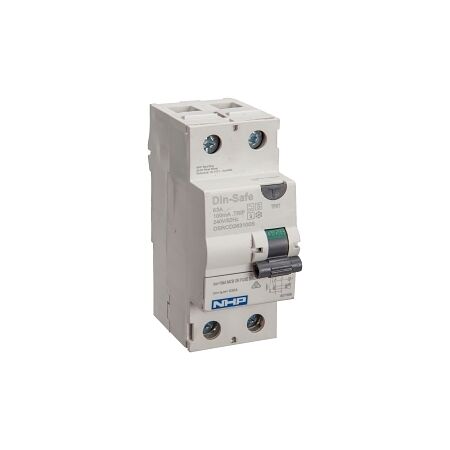

NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole and Neutral 63A 100mA Type S

Residual Current Circuit Breaker RCCB 63A | 100mA Type S | DIN Rail Mount by NHP

BRAND: NHP

SKU: DSRCD263100S

$679.40 List price: $902.10

+ −

30 Days Return Delivery Options

Residual current circuit breaker with 63A rated current and 100mA leakage protection—ideal for residential and commercial safety. Built for easy installation with DIN rail mount, ensuring electrical safety and compliance.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole and Neutral 63A 100mA Type S

Brand: NHP

SKU: DSRCD263100S

Alternatively Known As: RCCB, Residual Current Device, RCD, Circuit Breaker

Technical Specifications

Number of Poles: 2
Voltage Type: AC
Frequency: 50/60 Hz
Rated Current: 63 A
Rated Leakage Current: 100 mA
Min Service Voltage: 117 V
Max Rated Operation Voltage: 265 V
Rated Insulation Voltage: 440 V
Rated Impulse Withstand Voltage: 8 kV
Rated Fault Current: 10000 A
Electrical Life: 10000 cycles
Degree of Protection: IP20
Connectable Conductor Cross Section: 50-50 mm²
Mechanical Life: 20000 cycles
Operating Temperature: 55 °C
Ambient Temperature: -25-55 °C
Storage Temperature: 70 °C
Pollution Degree: 2
Dimensions (H x L x W): 86mm x 76mm x 36mm
Weight: 0.25 kg

Key Features

1 Pole and Neutral configuration for effective leakage current protection.
Rated current of 63A and leakage current of 100mA.
DIN rail mounting for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring electrical safety

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole and Neutral 63A 100mA Type S is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DSRCD263100S-AU-RCCB-1P-and-N-36mm-Datasheet.pdf (DSRCD263100S-AU-RCCB-1P-and-N-36mm-Datasheet.pdf, 273 Kb) [Download]
