Home/Electrical/Switchgear/Residual Current Devices/Residual Current Device 10A | 6kA Short Circuit | Long Body Design | Type A by NHP

Trade Discount 25%

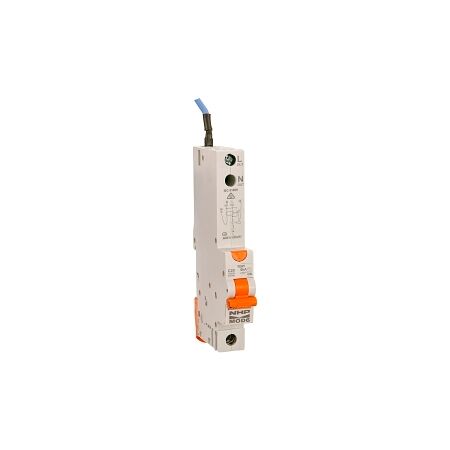

NHP MOD6 Residual Current Device - Long body w/ Overcurrent 6kA 10A 1Pole and N C Curve 30mA Type A

Residual Current Device 10A | 6kA Short Circuit | Long Body Design | Type A by NHP

BRAND: NHP

SKU: MOD6RCBO11030AL

$51.00 List price: $67.70

+ −

30 Days Return Delivery Options

Residual current device with 10A rating and 6kA short circuit capacity—ideal for residential and commercial electrical safety. Built for easy installation with long body design and 30mA leakage protection.

Description
Attachments

Product Name/Title: NHP MOD6 Residual Current Device - Long body w/ Overcurrent 6kA 10A 1Pole and N C Curve 30mA Type A

Brand: NHP

SKU: MOD6RCBO11030AL

Alternatively Known As: RCD, Residual Current Breaker, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 10 A
Rated Voltage: 240 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 6 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 6 kV
Tripping Time: 40 ms
Min Service Voltage: 195 V
Max Operating Voltage: 255 V
Rated Residual Make Break Capacity: 6000 A
Number of Poles Total: 2
Degree of Protection: IP20
Operating Temperature: -5 to 55 °C
Dimensions (H x L x W): 125mm x 76mm x 18mm
Weight: 0.23 kg

Key Features

Long body design with pigtail for easy installation.
Rated for 10A with a 30mA leakage current.
6kA short circuit breaking capacity.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring electrical safety

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications requiring electrical safety.

Non-Returnable & Non-Cancellable

MOD6RCBO11030AL-AU-RCBO-6kA-1P-18mm-Long-body-with-Pigtail-Datasheet.pdf (MOD6RCBO11030AL-AU-RCBO-6kA-1P-18mm-Long-body-with-Pigtail-Datasheet.pdf, 408 Kb) [Download]
