Residual Current Device 10kA 10A | 100mA Type A | DIN Rail Mount by NHP
Residual current device with 10kA short circuit capacity and 100mA residual current rating—ideal for residential and commercial electrical safety. Built for easy installation with DIN rail mounting and C curve tripping characteristic.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

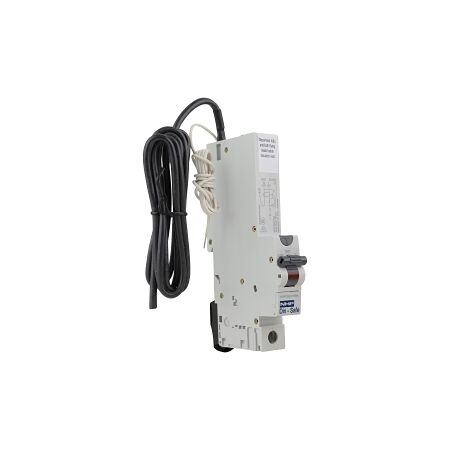

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 10A 1Pole and N C Curve 100mA Type A
Brand: NHP
SKU: DSRCBH10100A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 10 A
- Rated Voltage: 240 V
- Rated Leakage Current: 100 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 265 V
- Rated Residual Make Break Capacity: 10000 A
- Number of Poles Total: 2
- Degree of Protection: IP20
- Electrical Life: 10000 cycles
- Mechanical Life: 20000 cycles
- Operating Temperature: -5-55 °C
- Dimensions (H x L x W): 125mm x 76mm x 18mm
- Weight: 0.35 kg
Key Features
- 10kA short circuit breaking capacity
- 100mA residual current rating
- C curve tripping characteristic
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring electrical safety devices
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Helps prevent electrical hazards and enhances safety.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 10A 1Pole and N C Curve 100mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
