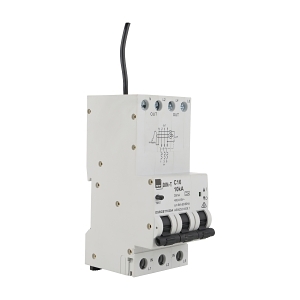

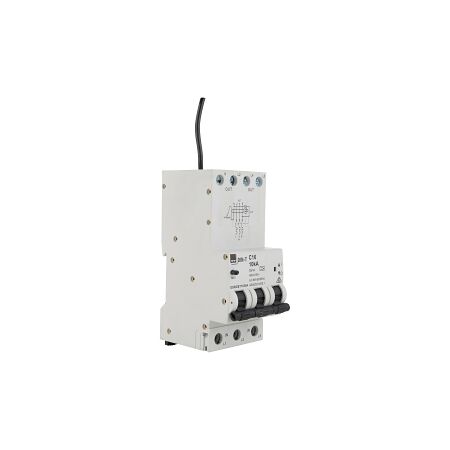

NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 10A 3Pole and N C Curve 30mA Type A

Residual Current Device 10kA 10A | 3 Pole C Curve | DIN Rail Mount by NHP

BRAND: NHP

SKU: DSRCBT1030A

$325.40 List price: $432.10

+ −

30 Days Return Delivery Options

Residual current device with 10kA short circuit capacity and 30mA residual current rating—ideal for residential and commercial safety. Built for easy installation on DIN rail, with C curve tripping for reliable protection.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 10A 3Pole and N C Curve 30mA Type A

Brand: NHP

SKU: DSRCBT1030A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 10 A
Rated Voltage: 415 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 10 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 300 ms
Min Service Voltage: 204 V
Max Operating Voltage: 457 V
Rated Residual Make Break Capacity: 6000 A
Number of Poles Total: 4
Number of Protected Poles: 3
Degree of Protection: IP20
Mounting Method: DIN rail (top hat rail) 35 mm
Dimensions (H x L x W): 117.5mm x 71.6mm x 53.4mm
Weight: 0.55 kg

Key Features

10kA short circuit breaking capacity
30mA residual current rating
C curve tripping characteristic
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DSRCBT1030A-AU-RCBO-10kA-3P-54mm-with-Pigtail-Datasheet.pdf (DSRCBT1030A-AU-RCBO-10kA-3P-54mm-with-Pigtail-Datasheet.pdf, 402 Kb) [Download]
