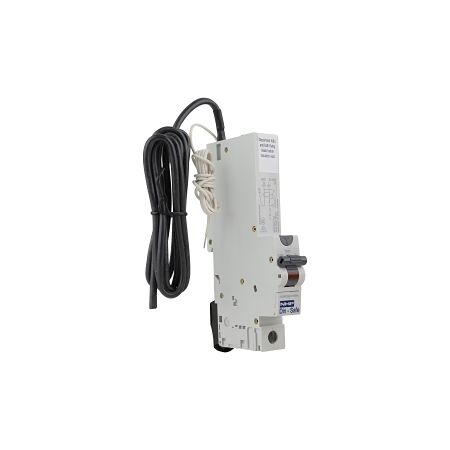

NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 16A 1Pole and N C Curve 30mA Type A

Residual Current Device 10kA 16A | 1 Pole 30mA Type A | Long Body by NHP

BRAND: NHP

SKU: DSRCBH1630A

$115.90 List price: $153.90

+ −

30 Days Return Delivery Options

Residual current device with 10kA short circuit capacity and 16A rated current—ideal for residential and commercial safety. Built for easy DIN rail installation, with 30mA leakage protection.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 16A 1Pole and N C Curve 30mA Type A

Brand: NHP

SKU: DSRCBH1630A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 16 A
Rated Voltage: 240 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 10 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 6 kV
Tripping Time: 40 ms
Min Service Voltage: 195 V
Max Operating Voltage: 265 V
Rated Residual Make Break Capacity: 10000 A
Number of Poles: 1
Mounting Method: DIN rail (top hat rail) 35 mm
Degree of Protection: IP20
Operating Temperature: -5 to 55 °C
Dimensions (H x L x W): 125mm x 76mm x 18mm
Weight: 0.35 kg

Key Features

Long body design for easy installation on DIN rail.
Rated current of 16A with a leakage current of 30mA.
10kA short circuit breaking capacity.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Designed to enhance electrical safety and reduce the risk of electrical fires.

Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The NHP DIN-T Residual Current Device Long Body 10kA 16A 1Pole 30mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DSRCBH1630A-AU-RCBO-10kA-1P-long-body-18mm-with-Pigtail-Datasheet.pdf (DSRCBH1630A-AU-RCBO-10kA-1P-long-body-18mm-with-Pigtail-Datasheet.pdf, 278 Kb) [Download]
