Residual Current Device 10kA 20A | 10mA Type A | DIN Rail Mount by NHP
Residual current device with 10kA short circuit capacity and 20A rated current—ideal for residential and commercial safety. Built for easy installation with DIN rail mounting and 10mA leakage protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

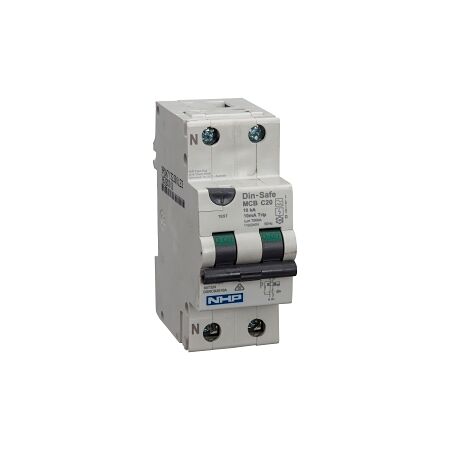

Product Name/Title: NHP DIN-T Residual Current Device Short Body w/ Overcurrent 10kA 20A 1Pole and N C Curve 10mA Type A
Brand: NHP
SKU: DSRCB2010A
Alternatively Known As: RCD, RCBO, Residual Current Circuit Breaker, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 20 A
- Rated Voltage: 240 V
- Rated Leakage Current: 10 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 117 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Degree of Protection: IP20
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 86mm x 68mm x 36mm
- Weight: 0.25 kg
Key Features
- 10kA short circuit breaking capacity
- 20A rated current with 10mA leakage protection
- C curve trip characteristic for general applications
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring electrical safety
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Short Body w/ Overcurrent 10kA 20A 1Pole and N C Curve 10mA Type A is available now for immediate purchase. Ideal for residential and commercial applications.
