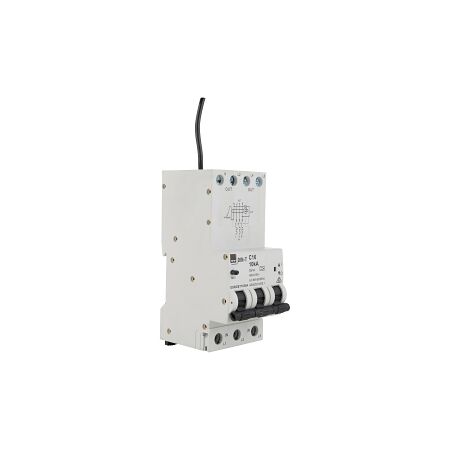

Residual Current Device 10kA 20A 3 Pole C Curve DIN Rail NHP

BRAND: NHP
SKU: DSRCBT2030A
$346.80 List price: $432.10
+ −
30 Days Return Electricians Unlock Trade Access
Residual current device with 10kA short circuit capacity and 30mA residual current rating—ideal for residential and commercial safety.
Technical Specifications
  • Rated Current: 20 A
  • Rated Voltage: 415 V
  • Rated Leakage Current: 30 mA
  • Frequency: 50/60 Hz
  • Rated Short Circuit Breaking Capacity: 10 kA
  • Voltage Type: AC
  • Trip Curve: C
  • Rated Impulse Withstand Voltage: 4 kV
  • Tripping Time: 300 ms
  • Rated Residual Make Break Capacity: 6000 A
  • Number of Poles: 3
  • Mounting Method: DIN rail (top hat rail) 35 mm
  • Degree of Protection: IP20
  • Operating Temperature: -5 to 55 °C
  • Dimensions (H x L x W): 117.5mm x 71.6mm x 53.4mm
  • Weight: 0.55 kg
Key Features
  • 10kA short circuit breaking capacity
  • 30mA residual current rating for enhanced safety
  • C curve tripping for better protection against overloads
  • DIN rail mounting for easy installation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small commercial buildings
  • Commercial: Retail and office spaces requiring electrical safety
Standards & Compliance
  • Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
  • Designed to enhance electrical safety and reduce the risk of electrical fires.
Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DSRCBT2030A-AU-RCBO-10kA-3P-54mm-with-Pigtail-Datasheet.pdf (DSRCBT2030A-AU-RCBO-10kA-3P-54mm-with-Pigtail-Datasheet.pdf, 402 Kb) [Download]
