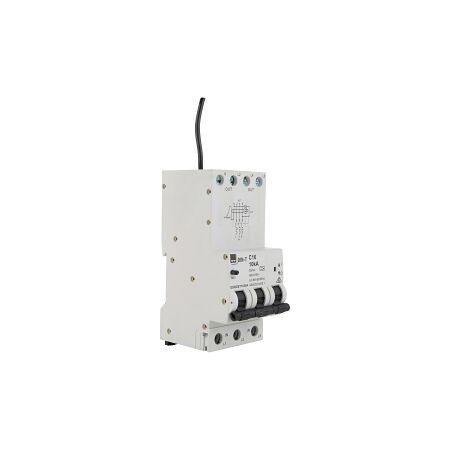

NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 25A 3Pole and N C Curve 100mA Type A

Residual Current Device 10kA 25A | 100mA C Curve | DIN Rail by NHP

BRAND: NHP

SKU: DSRCBT25100A

$577.10 List price: $766.30

+ −

30 Days Return Delivery Options

Residual current device with 10kA short circuit capacity and 25A rated current—ideal for residential and commercial safety. Built for easy DIN rail installation, with 100mA leakage protection and C curve tripping.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 25A 3Pole and N C Curve 100mA Type A

Brand: NHP

SKU: DSRCBT25100A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 25 A
Rated Voltage: 415 V
Rated Leakage Current: 100 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 10 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 300 ms
Min Service Voltage: 204 V
Max Operating Voltage: 457 V
Rated Residual Make Break Capacity: 6000 A
Number of Poles Total: 4
Number of Protected Poles: 3
Degree of Protection: IP20
Mounting Method: DIN rail (top hat rail) 35 mm
Dimensions (H x L x W): 117.5mm x 71.6mm x 53.4mm
Weight: 0.55 kg

Key Features

10kA short circuit breaking capacity
25A rated current with 100mA leakage protection
C curve tripping for moderate inrush currents
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DSRCBT25100A-AU-RCBO-10kA-3P-54mm-with-Pigtail-Datasheet.pdf (DSRCBT25100A-AU-RCBO-10kA-3P-54mm-with-Pigtail-Datasheet.pdf, 403 Kb) [Download]
