Residual Current Device 10kA 25A | 30mA Type A | DIN Rail Mount by NHP
Residual current device with 10kA short circuit capacity and 30mA leakage protection—ideal for residential and commercial safety. Built for easy installation with DIN rail mounting and C curve tripping characteristic.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

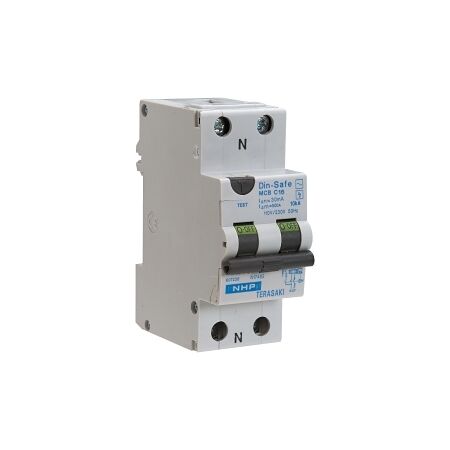

Product Name/Title: NHP DIN-T Residual Current Device Short Body w/ Overcurrent 10kA 25A 1Pole and N C Curve 30mA Type A
Brand: NHP
SKU: DSRCB2530A
Alternatively Known As: Residual Current Circuit Breaker, RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 25 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 100 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Electrical Life: 10000 cycles
- Rated Insulation Voltage: 440 V
- Degree of Protection: IP20
- Number of Protected Poles: 1
- Mechanical Life: 20000 cycles
- Operating Temperature: -5-55 °C
- Dimensions (H x L x W): 86mm x 68mm x 36mm
- Weight: 0.25 kg
Key Features
- 10kA short circuit breaking capacity
- 30mA leakage current protection
- C curve tripping characteristic
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Short Body is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
