Residual Current Device 10kA 32A | 10mA Type A | Long Body by NHP
Residual current device with 10kA breaking capacity and 10mA leakage—ideal for residential and commercial safety. Built for easy DIN rail installation, with long body design for enhanced protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

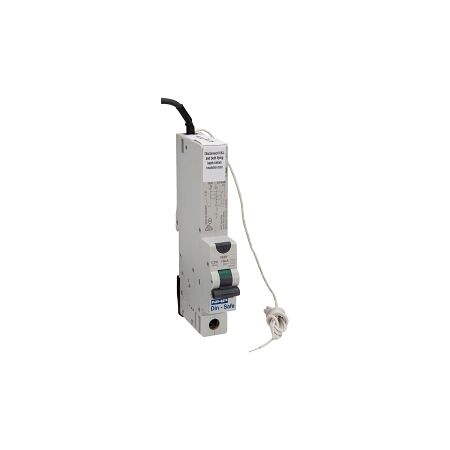

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 32A 1Pole and N C Curve 10mA Type A
Brand: NHP
SKU: DSRCBH3210A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 32 A
- Rated Voltage: 240 V
- Rated Leakage Current: 10 mA
- Frequency: 50/60 Hz
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 265 V
- Rated Insulation Voltage: 500 V
- Degree of Protection: IP20
- Number of Protected Poles: 1
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 125mm x 76mm x 18mm
- Weight: 0.35 kg
Key Features
- Long body design for easy installation on DIN rail.
- 10kA short circuit breaking capacity.
- 10mA leakage current for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 32A 1Pole and N C Curve 10mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
