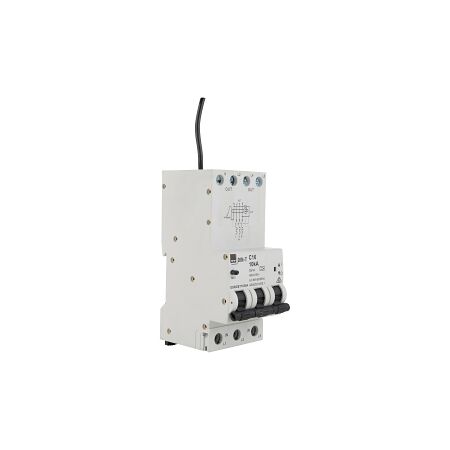

NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 40A 3Pole and N C Curve 100mA Type A

Residual Current Device 10kA 40A | 100mA Type A | DIN Rail Mount by NHP

BRAND: NHP

SKU: DSRCBT40100A

$673.70 List price: $894.60

+ −

30 Days Return Delivery Options

Residual current device with 10kA short circuit capacity and 40A rated current—ideal for residential and commercial safety. Built for easy DIN rail installation, with 100mA leakage current and C trip curve for standard applications.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 40A 3Pole and N C Curve 100mA Type A

Brand: NHP

SKU: DSRCBT40100A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 40 A
Rated Voltage: 415 V
Rated Leakage Current: 100 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 10 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 300 ms
Min Service Voltage: 204 V
Max Operating Voltage: 457 V
Rated Residual Make Break Capacity: 6000 A
Number of Poles Total: 4
Number of Protected Poles: 3
Degree of Protection: IP20
Mounting Method: DIN rail (top hat rail) 35 mm
Dimensions (H x L x W): 117.5mm x 71.6mm x 53.4mm
Weight: 0.55 kg

Key Features

10kA short circuit breaking capacity
Rated current of 40A with a 100mA leakage current
C trip curve for standard applications
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DSRCBT40100A-AU-RCBO-10kA-3P-54mm-with-Pigtail-Datasheet.pdf (DSRCBT40100A-AU-RCBO-10kA-3P-54mm-with-Pigtail-Datasheet.pdf, 402 Kb) [Download]
