Making Trade Life Easy!

Home/Electrical/Switchgear/MCB/RCD RCBO Combos/Residual Current Device 10kA 6A | 30mA Type A | DIN Rail Mount by NHP

Trade Discount 25%

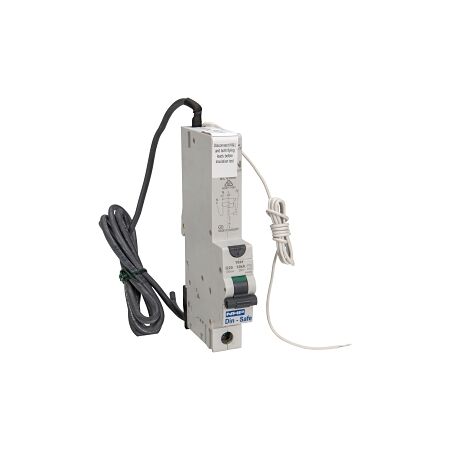

NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 6A 1Pole and N D Curve 30mA Type A

Residual Current Device 10kA 6A | 30mA Type A | DIN Rail Mount by NHP

BRAND: NHP

SKU: DSRCBH0630AD

$123.20 List price: $163.60

+ −

30 Days Return Delivery Options

Residual current device with 10kA short circuit capacity and 30mA residual current rating—ideal for residential and commercial electrical safety. Built for compact spaces, with DIN rail mounting for easy installation.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 6A 1Pole and N D Curve 30mA Type A

Brand: NHP

SKU: DSRCBH0630AD

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 6 A
Rated Voltage: 240 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Trip Curve: D
Rated Impulse Withstand Voltage: 6 kV
Tripping Time: 40 ms
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Operating Temperature: -5 to 55 °C
Degree of Protection: IP20
Dimensions (H x L x W): 125mm x 76mm x 18mm
Weight: 0.35 kg

Key Features

10kA short circuit breaking capacity
30mA residual current rating for enhanced safety
DIN rail mounting for easy installation
Long body design for compact spaces

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring electrical safety

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications requiring electrical safety.

DSRCBH0630AD-AU-RCBO-10kA-1P-long-body-18mm-with-Pigtail-Datasheet.pdf (DSRCBH0630AD-AU-RCBO-10kA-1P-long-body-18mm-with-Pigtail-Datasheet.pdf, 296 Kb) [Download]
