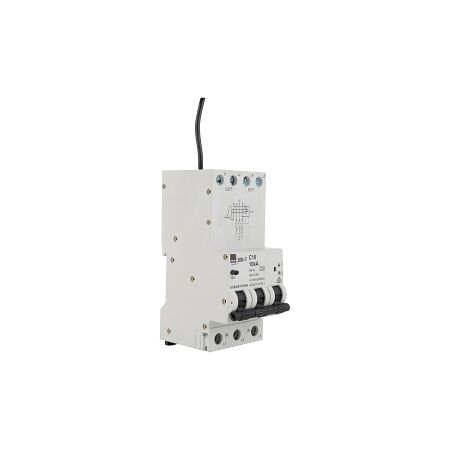

NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 6A 3Pole and N C Curve 100mA Type A

Residual Current Device 10kA 6A | 3 Pole & N C Curve | 100mA Type A by NHP

BRAND: NHP

SKU: DSRCBT06100A

$571.70 List price: $759.10

+ −

30 Days Return Delivery Options

Residual current device with 10kA short circuit capacity and 100mA leakage current—ideal for residential and commercial safety. Built for enhanced protection, with DIN rail mounting for easy installation.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 6A 3Pole and N C Curve 100mA Type A

Brand: NHP

SKU: DSRCBT06100A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 6 A
Rated Voltage: 415 V
Frequency: 50/60 Hz
Voltage Type: AC
Tripping Time: 300 ms
Rated Impulse Withstand Voltage: 4 kV
Rated Insulation Voltage: 500 V
Degree of Protection: IP20
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Operating Temperature: -5 to 55 °C
Dimensions (H x L x W): 117.5mm x 71.6mm x 53.4mm
Weight: 0.55 kg

Key Features

10kA short circuit breaking capacity
Rated leakage current of 100mA
C trip curve for better protection
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DSRCBT06100A-AU-RCBO-10kA-3P-54mm-with-Pigtail-Datasheet.pdf (DSRCBT06100A-AU-RCBO-10kA-3P-54mm-with-Pigtail-Datasheet.pdf, 402 Kb) [Download]
