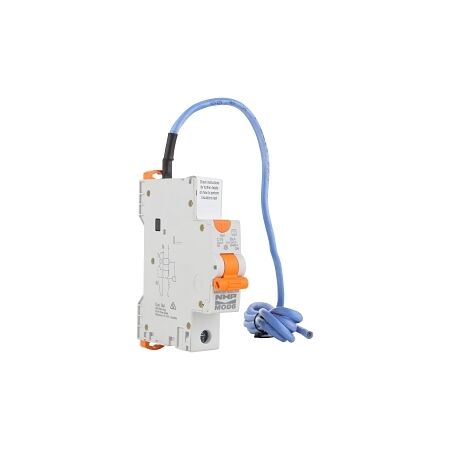

NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 16A 1PN C Curve 30mA Type A Pigtail

Residual Current Device 16A 1PN | 6kA Breaking Capacity | Compact Pigtail Design by NHP

BRAND: NHP

SKU: M6RCBS1630CAN

$38.90 List price: $51.70

+ −

30 Days Return Delivery Options

Residual current device with 16A current and 30mA leakage—ideal for residential and commercial safety. Built for easy installation, with compact pigtail design and 6kA breaking capacity.

Description
Attachments

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 16A 1PN C Curve 30mA Type A Pigtail

Brand: NHP

SKU: M6RCBS1630CAN

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Voltage: 240 V
Frequency: 50/60 Hz
Trip Curve: C
Rated Impulse Withstand Voltage: 6 kV
Tripping Time: 40 ms
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Degree of Protection: IP20
Operating Temperature: -5 to 55 °C
Dimensions (H x L x W): 86mm x 76mm x 18mm
Weight: 0.22 kg

Key Features

Compact design with pigtail for easy installation.
Rated current of 16A and leakage current of 30mA.
High breaking capacity of 6kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small commercial installations
Commercial: Retail and office environments requiring electrical safety

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications requiring electrical safety.

Non-Returnable & Non-Cancellable

M6RCBS1630CAN-AU-RCBO-6kA-1P-18mm-Compact-with-Pigtail-Datasheet.pdf (M6RCBS1630CAN-AU-RCBO-6kA-1P-18mm-Compact-with-Pigtail-Datasheet.pdf, 432 Kb) [Download]
