Residual Current Device 20A | 10kA Overcurrent | 30mA Sensitivity | DIN Rail by NHP
Residual current device with 20A rated current and 10kA overcurrent protection—ideal for residential, commercial, and industrial applications. Built for enhanced safety, with 30mA sensitivity and easy DIN rail installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

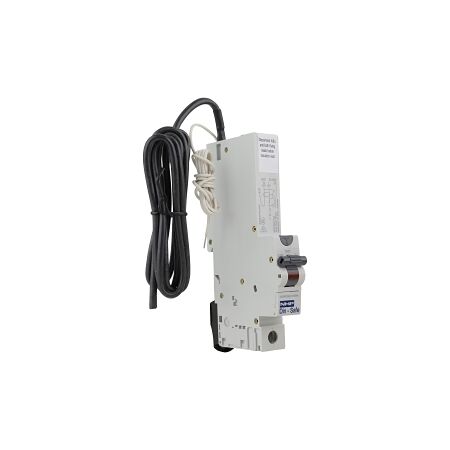

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 20A 1Pole and N C Curve 30mA Type A
Brand: NHP
SKU: DSRCBH2030A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 20 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 265 V
- Rated Residual Make Break Capacity: 10000 A
- Number of Poles: 1
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 125mm x 76mm x 18mm
- Weight: 0.35 kg
Key Features
- Long body design for easy installation on DIN rail.
- Overcurrent protection with a rated current of 20A.
- Residual current protection with a sensitivity of 30mA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 20A 1Pole and N C Curve 30mA Type A is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
