Residual Current Device 25A | 10kA Short Circuit | 100mA Leakage | DIN Rail by NHP
Residual current device with 25A rated current and 100mA leakage—ideal for residential and commercial safety. Built for easy DIN rail installation, with 10kA short circuit capacity and long body design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

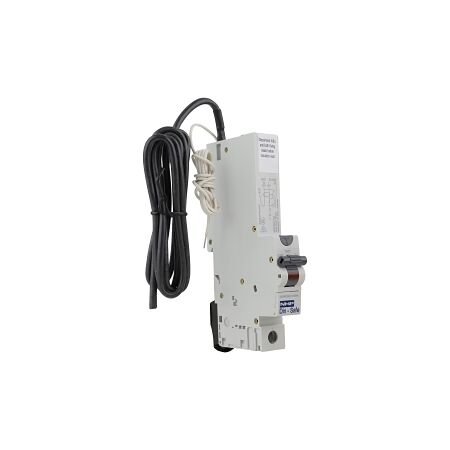

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 25A 1Pole and N C Curve 100mA Type A
Brand: NHP
SKU: DSRCBH25100A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 25 A
- Rated Voltage: 240 V
- Rated Leakage Current: 100 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 265 V
- Rated Residual Make Break Capacity: 10000 A
- Number of Poles: 1
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Operating Temperature: -5-55 °C
- Dimensions (H x L x W): 125mm x 76mm x 18mm
- Weight: 0.35 kg
Key Features
- Long body design for easy installation on DIN rail.
- Rated current of 25A and leakage current of 100mA.
- 10kA short circuit breaking capacity.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Long Body with Overcurrent 10kA 25A 1Pole and N C Curve 100mA Type A is available now for immediate purchase. Ideal for residential and commercial applications.
