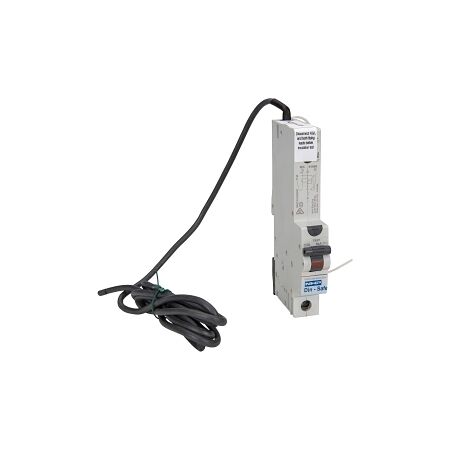

Residual Current Device 32A 1Pole | 6kA Overcurrent | 30mA Type A | Long Body by NHP
Residual current device with 32A rated current and 30mA leakage protection—ideal for residential and commercial safety. Built for easy DIN rail installation, with 6kA overcurrent protection and long body design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 6kA 32A 1Pole and N C Curve 30mA Type A
Brand: NHP
SKU: DSRCBH63230A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 32 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 265 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Number of Protected Poles: 1
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Operating Temperature: -5-55 °C
- Dimensions (H x L x W): 125mm x 76mm x 18mm
- Weight: 0.35 kg
Key Features
- Long body design for easy installation in DIN rail systems.
- Overcurrent protection with a rated current of 32A.
- Residual current protection with a leakage current of 30mA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Long Body 32A 1Pole 30mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
