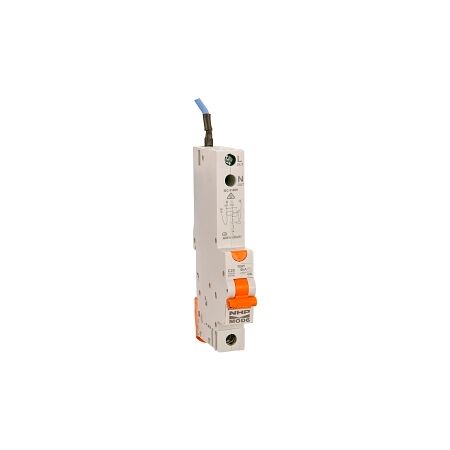

Residual Current Device 32A 6kA | 1 Pole N C Curve | Long Body by NHP

BRAND: NHP
SKU: MOD6RCBO13230AL
$51.00 List price: $67.70
+ −
30 Days Return Delivery Options
Residual current device with 32A rated current and 6kA short circuit capacity—ideal for residential and commercial safety. Built for easy installation with long body design and pigtail, offering reliable earth leakage protection.

Product Name/Title: NHP MOD6 Residual Current Device - Long body w/ Overcurrent 6kA 32A 1Pole and N C Curve 30mA Type A

Brand: NHP

SKU: MOD6RCBO13230AL

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications
  • Rated Current: 32 A
  • Rated Voltage: 240 V
  • Rated Leakage Current: 30 mA
  • Frequency: 50/60 Hz
  • Rated Short Circuit Breaking Capacity: 6 kA
  • Voltage Type: AC
  • Trip Curve: C
  • Rated Impulse Withstand Voltage: 6 kV
  • Tripping Time: 40 ms
  • Min Service Voltage: 195 V
  • Max Operating Voltage: 255 V
  • Rated Residual Make Break Capacity: 6000 A
  • Number of Poles: 1
  • Degree of Protection: IP20
  • Mounting Method: DIN rail (top hat rail) 35 mm
  • Operating Temperature: -5 to 55 °C
  • Dimensions (H x L x W): 125mm x 76mm x 18mm
  • Weight: 0.23 kg
Key Features
  • Long body design with pigtail for easy installation.
  • Rated current of 32A and leakage current of 30mA.
  • 6kA short circuit breaking capacity.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring protection against earth leakage
Standards & Compliance
  • Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
  • Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable earth leakage protection.

Non-Returnable & Non-Cancellable

MOD6RCBO13230AL-AU-RCBO-6kA-1P-18mm-Long-body-with-Pigtail-Datasheet.pdf (MOD6RCBO13230AL-AU-RCBO-6kA-1P-18mm-Long-body-with-Pigtail-Datasheet.pdf, 408 Kb) [Download]
