Residual Current Device 32A | 6kA Short Circuit | 10mA Leakage | Compact Design by NHP
Residual current device with 32A rated current and 10mA leakage—ideal for residential and commercial safety. Built for compact spaces, with 6kA short circuit capacity and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

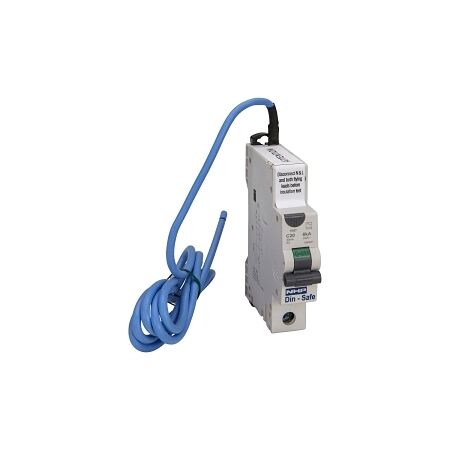

Product Name/Title: NHP DIN-T Residual Current Device Short Body w/ Overcurrent 6kA 32A 1Pole and N C Curve 10mA Type A
Brand: NHP
SKU: DSRCBS3210CAN
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 32 A
- Rated Voltage: 240 V
- Rated Leakage Current: 10 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles: 1
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Operating Temperature: -5-60 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.22 kg
Key Features
- Compact 18mm design for space-saving installation.
- Rated current of 32A and leakage current of 10mA.
- 6kA short circuit breaking capacity.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and light industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
