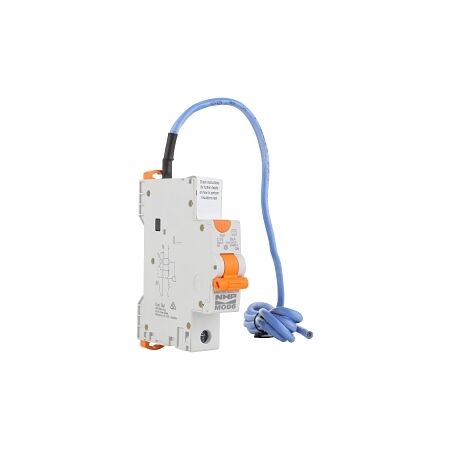

Residual Current Device 32A | 6kA Short Circuit | 10mA Leakage | Compact Pigtail by NHP

BRAND: NHP
SKU: M6RCBS3210CAN
$48.30 List price: $64.20
+ −
30 Days Return Delivery Options
Residual current device with 32A rated current and 10mA leakage—ideal for residential and commercial safety. Built for easy installation, with compact pigtail design and 6kA short circuit capacity.

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 32A 1PN C Curve 10mA Type A Pigtail

Brand: NHP

SKU: M6RCBS3210CAN

Alternatively Known As: RCD, Residual Current Circuit Breaker, Earth Leakage Circuit Breaker

Technical Specifications
  • Rated Current: 32 A
  • Rated Voltage: 240 V
  • Rated Leakage Current: 10 mA
  • Frequency: 50/60 Hz
  • Rated Short Circuit Breaking Capacity: 6 kA
  • Voltage Type: AC
  • Trip Curve: C
  • Rated Impulse Withstand Voltage: 6 kV
  • Tripping Time: 40 ms
  • Min Service Voltage: 195 V
  • Max Operating Voltage: 255 V
  • Rated Residual Make Break Capacity: 6000 A
  • Number of Poles Total: 2
  • Degree of Protection: IP20
  • Operating Temperature: -5 to 55 °C
  • Dimensions (H x L x W): 86mm x 76mm x 18mm
  • Weight: 0.22 kg
Key Features
  • Compact design with pigtail for easy installation.
  • Rated current of 32A and leakage current of 10mA.
  • 6kA short circuit breaking capacity.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and light industrial applications
Standards & Compliance
  • Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
  • Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications, ensuring electrical safety.

Non-Returnable & Non-Cancellable

M6RCBS3210CAN-AU-RCBO-6kA-1P-18mm-Compact-with-Pigtail-Datasheet.pdf (M6RCBS3210CAN-AU-RCBO-6kA-1P-18mm-Compact-with-Pigtail-Datasheet.pdf, 433 Kb) [Download]
