Residual Current Device 4 Pole 63 Amp | 30 mA Sensitivity | IP2X Rated | by Allen-Bradley
Residual Current Device 4 Pole 63 Amp | 30 mA Sensitivity | IP2X Rated | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

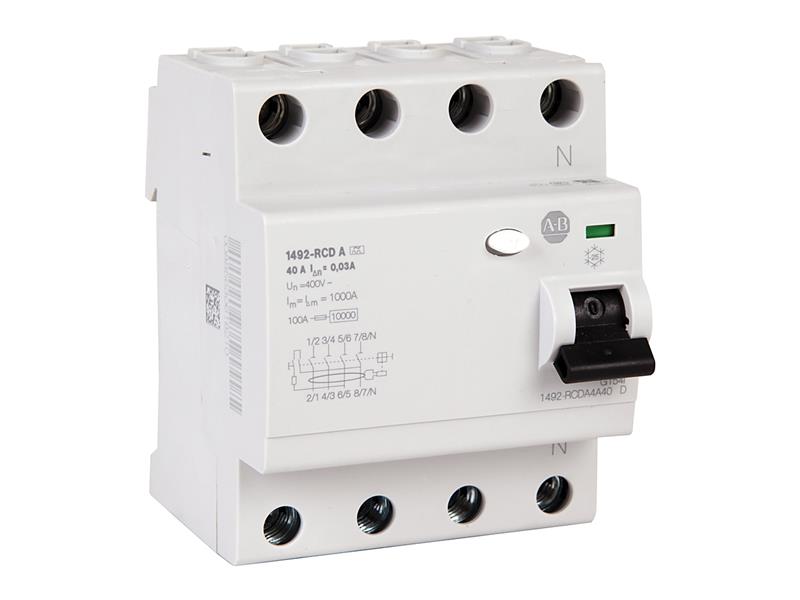

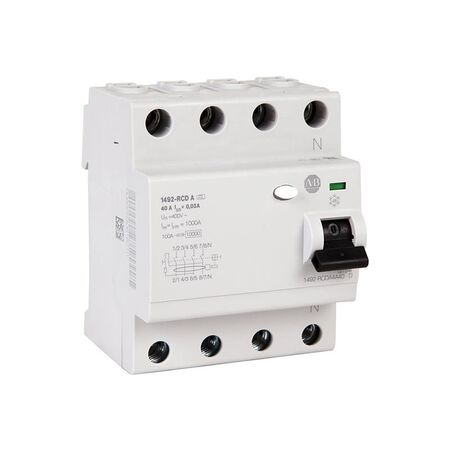

Product Name/Title: Allen-Bradley 1492RCDA4A63 Residual Current Device 4 Pole 63 Amp
Brand: Allen-Bradley
SKU: 1492RCDA4A63
Alternatively Known As: RCD, Residual Current Circuit Breaker, RCCB, Earth Leakage Circuit Breaker
Technical Specifications
- 4 pole configuration (3 pole + neutral)
- Rated current: 63 Amp
- Voltage: 230-400 VAC
- Frequency: 50/60 Hz
- Residual current sensitivity: 30 mA
- Operating temperature: -25 to +55 °C
- IP rating: IP2X
- Dimensions (H x L x W): 85mm x 75mm x 45mm
- Weight: 1.5 kg
Key Features
- 4 pole configuration (3 pole + neutral)
- 63 Amp rated current
- 30 mA sensitivity for residual current detection
- Operating voltage 230-400 VAC, 50/60 Hz
- IP2X protection rating
- Operating temperature range from -25 to +55 degrees Celsius
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Industrial electrical safety systems
- Commercial electrical installations requiring residual current protection
- Electrical panels and switchboards
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and shocks
- Supports energy-efficient electrical system protection
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1492RCDA4A63 Residual Current Device is available for immediate purchase, ideal for industrial and commercial electrical safety applications.
