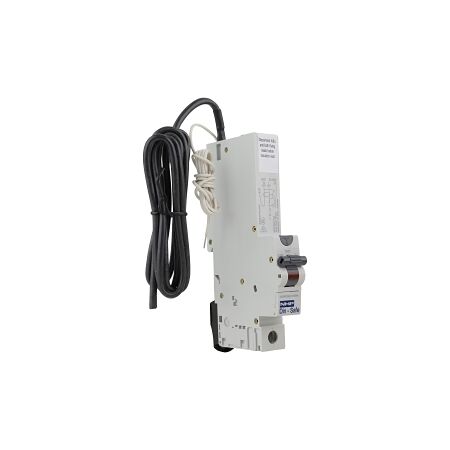

Residual Current Device 40A | 10kA Overcurrent | 100mA Type A | Long Body by NHP
Residual current device with 40A rated current and 10kA overcurrent protection—ideal for residential and commercial safety. Built for easy DIN rail installation, with 100mA leakage current rating for enhanced electrical safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 40A 1Pole and N C Curve 100mA Type A
Brand: NHP
SKU: DSRCBH40100A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 40 A
- Rated Voltage: 240 V
- Rated Leakage Current: 100 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 265 V
- Rated Residual Make Break Capacity: 10000 A
- Number of Poles: 1
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 125mm x 76mm x 18mm
- Weight: 0.35 kg
Key Features
- Long body design for easy installation on DIN rail.
- Overcurrent protection with a rated current of 40A.
- Residual current protection with a leakage current rating of 100mA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 40A 1Pole and N C Curve 100mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
