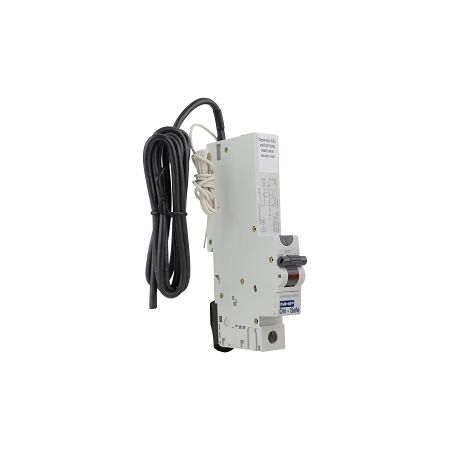

NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 40A 1Pole and N C Curve 30mA Type A

Residual Current Device 40A 30mA | 10kA Overcurrent | DIN Rail Mount by NHP

BRAND: NHP

SKU: DSRCBH4030A

$115.30 List price: $153.10

+ −

30 Days Return Delivery Options

Residual current device with 40A rated current and 30mA leakage—ideal for residential and commercial safety. Built for easy DIN rail installation, with 10kA overcurrent protection and long body design.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 40A 1Pole and N C Curve 30mA Type A

Brand: NHP

SKU: DSRCBH4030A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 40 A
Rated Voltage: 240 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 10 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 6 kV
Tripping Time: 40 ms
Min Service Voltage: 195 V
Max Operating Voltage: 265 V
Rated Residual Make Break Capacity: 10000 A
Number of Poles: 1
Mounting Method: DIN rail (top hat rail) 35 mm
Degree of Protection: IP20
Operating Temperature: -5-55 °C
Dimensions (H x L x W): 125mm x 76mm x 18mm
Weight: 0.35 kg

Key Features

Long body design for easy installation in DIN rail systems.
Rated current of 40A and leakage current of 30mA for effective protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 40A 1Pole is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DSRCBH4030A-AU-RCBO-10kA-1P-long-body-18mm-with-Pigtail-Datasheet.pdf (DSRCBH4030A-AU-RCBO-10kA-1P-long-body-18mm-with-Pigtail-Datasheet.pdf, 278 Kb) [Download]
