Residual Current Device 6A 10mA | 6kA Breaking Capacity | Compact Pigtail by NHP
Residual current device with 6A rated current and 10mA leakage—ideal for residential, commercial, and industrial safety. Built for enhanced protection, with compact design and high 6kA breaking capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

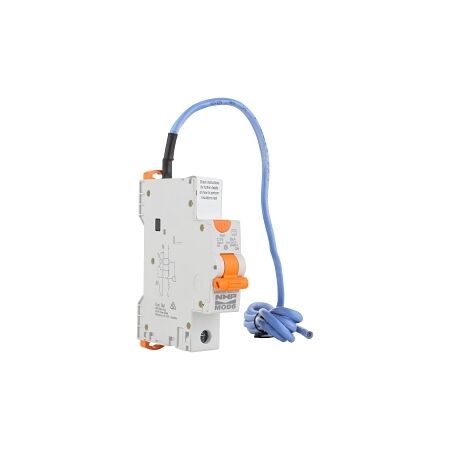

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 6A 1PN C Curve 10mA Type A Pigtail
Brand: NHP
SKU: M6RCBS0610CAN
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 6 A
- Rated Voltage: 240 V
- Rated Leakage Current: 10 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Protected Neutral Pole: Yes
- Number of Poles Total: 2
- Electrical Life: 10000 cycles
- Type of Electric Connection: Fork and pin
- Isolator Application: Yes
- Rated Insulation Voltage: 440 V
- Concurrently Switching Neutral Conductor: Yes
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Number of Protected Poles: 2
- Mechanical Life: 20000 cycles
- Max Shock Duration: 5 ms
- Max Shock Acceleration: 40 g
- Max Vibration Acceleration: 1.5 m/s²
- Max Vibration Frequency Operational: 80 Hz
- Max Vibration Duration: 30 min
- Operating Temperature: -5-55 °C
- Pollution Degree: 3
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.22 kg
Key Features
- Compact design with pigtail for easy installation.
- Rated current of 6A and leakage current of 10mA.
- High breaking capacity of 6kA for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces requiring electrical safety
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
