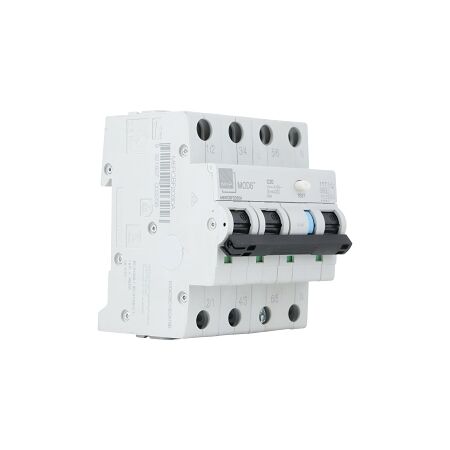

NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 10A 3PN C Curve 30mA Type A 72mm

Residual Current Device 6kA 10A | 3PN C Curve | 30mA Type A | Compact 72mm by NHP

BRAND: NHP

SKU: M6RCBF1030A

$174.50 List price: $231.70

+ −

30 Days Return Delivery Options

Residual current device with 6kA short circuit capacity and 10A rated current—ideal for residential, commercial, and industrial applications. Built for safety with 30mA residual current rating and compact 72mm design for space-saving installation.

Description
Attachments

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 10A 3PN C Curve 30mA Type A 72mm

Brand: NHP

SKU: M6RCBF1030A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 10 A
Rated Voltage: 415 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 6 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 300 ms
Min Service Voltage: 195 V
Max Operating Voltage: 440 V
Rated Residual Make Break Capacity: 4500 A
Number of Poles: 4
Electrical Life: 10,000 cycles
Type of Electric Connection: Pin
Isolator Application: Yes
Rated Insulation Voltage: 500 V
Concurrently Switching Neutral Conductor: Yes
Mounting Method: DIN rail (top hat rail) 35 mm
Degree of Protection: IP2X
Number of Protected Poles: 3
Mechanical Life: 20,000 cycles
Max Shock Duration: 13 ms
Max Shock Acceleration: 30 g
Operating Temperature: -25 to 55 °C
Dimensions (H x L x W): 75mm x 80mm x 72mm
Weight: 0.48 kg

Key Features

6kA short circuit breaking capacity
C curve tripping characteristic
30mA residual current rating for personal protection
Compact 72mm design for space-saving installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Machinery and equipment protection

Standards & Compliance

Complies with AS/NZS 61009 for residual current devices.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

Non-Returnable & Non-Cancellable

M6RCBF1030A-AU-RCBO-6kA-3P-and-N-72mm-Datasheet.pdf (M6RCBF1030A-AU-RCBO-6kA-3P-and-N-72mm-Datasheet.pdf, 469 Kb) [Download]
