Trade Discount 25%
Residual Current Device 6kA 16A | 10mA Type A | Compact Design by NHP
Residual current device with 6kA short circuit capacity and 10mA leakage current—ideal for residential and commercial safety. Built for compact installation, with DIN rail mounting and enhanced protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

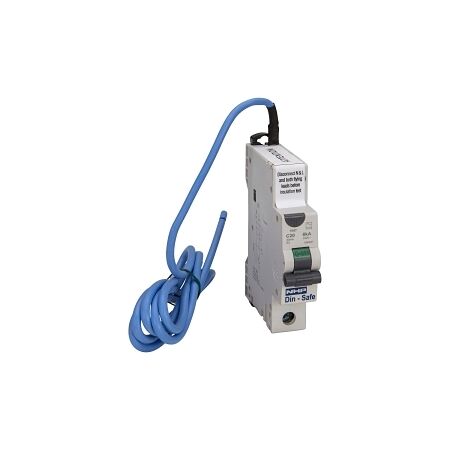

Product Name/Title: NHP DIN-T Residual Current Device Short Body w/ Overcurrent 6kA 16A 1Pole and N C Curve 10mA Type A
Brand: NHP
SKU: DSRCBS1610CAN
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 16 A
- Rated Voltage: 240 V
- Rated Leakage Current: 10 mA
- Frequency: 50/60 Hz
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles: 1
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Operating Temperature: -5 to 60 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.22 kg
Key Features
- Compact 18mm design for space-saving installation.
- Rated leakage current of 10 mA for enhanced safety.
- 6 kA short circuit breaking capacity.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any application requiring residual current protection
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Short Body is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable electrical protection.
