Home/Electrical/Switchgear/Residual Current Devices/Residual Current Device 6kA 20A | 30mA Type A | Compact 18mm by NHP

Trade Discount 25%

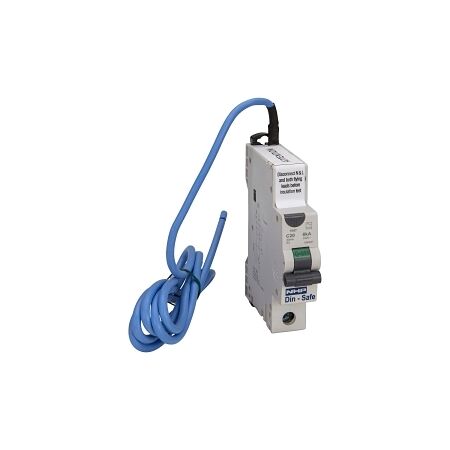

NHP DIN-T Residual Current Device Short Body w/ Overcurrent 6kA 20A 1Pole and N C Curve 30mA Type A

Residual Current Device 6kA 20A | 30mA Type A | Compact 18mm by NHP

BRAND: NHP

SKU: DSRCBS2030CAN

$140.50 List price: $186.60

+ −

30 Days Return Delivery Options

Residual current device with 6kA short circuit capacity and 20A rated current—ideal for residential and commercial safety. Built for electrical protection, with compact 18mm design and 30mA leakage current.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device Short Body w/ Overcurrent 6kA 20A 1Pole and N C Curve 30mA Type A

Brand: NHP

SKU: DSRCBS2030CAN

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 20 A
Rated Voltage: 240 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 6 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 6 kV
Tripping Time: 40 ms
Min Service Voltage: 195 V
Max Operating Voltage: 255 V
Rated Residual Make Break Capacity: 6000 A
Number of Poles: 1
Mounting Method: DIN rail (top hat rail) 35 mm
Degree of Protection: IP20
Operating Temperature: -5 to 60 °C
Dimensions (H x L x W): 86mm x 76mm x 18mm
Weight: 0.22 kg

Key Features

Compact design with a width of only 18mm.
Rated current of 20A and leakage current of 30mA.
6kA short circuit breaking capacity.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring electrical safety

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications requiring electrical safety.

DSRCBS2030CAN-AU-RCBO-6kA-1P-compact-18mm-with-Pigtail-Datasheet.pdf (DSRCBS2030CAN-AU-RCBO-6kA-1P-compact-18mm-with-Pigtail-Datasheet.pdf, 316 Kb) [Download]
