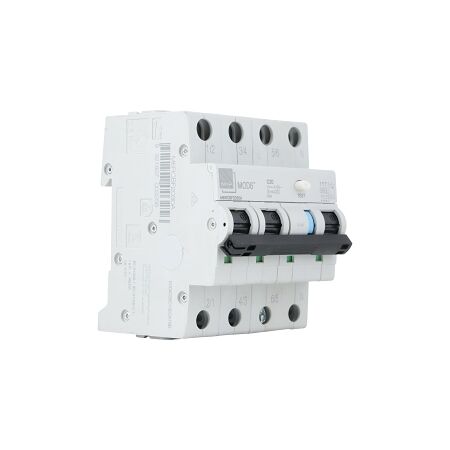

NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 20A 3PN C Curve 30mA Type A 72mm

Residual Current Device 6kA 20A | 3PN C Curve | Short Body 30mA by NHP

BRAND: NHP

SKU: M6RCBF2030A

$174.50 List price: $231.70

+ −

30 Days Return Delivery Options

Residual current device with 6kA overcurrent protection and 20A rated current—ideal for residential and commercial safety. Built for compact spaces, with 30mA leakage protection and DIN rail mounting.

Description
Attachments

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 20A 3PN C Curve 30mA Type A 72mm

Brand: NHP

SKU: M6RCBF2030A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 20 A
Rated Voltage: 415 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 6 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 300 ms
Min Service Voltage: 195 V
Max Operating Voltage: 440 V
Rated Residual Make Break Capacity: 4500 A
Number of Poles: 4
Electrical Life: 10,000 cycles
Mounting Method: DIN rail (top hat rail) 35 mm
Degree of Protection: IP2X
Number of Protected Poles: 3
Mechanical Life: 20,000 cycles
Max Shock Duration: 13 ms
Max Shock Acceleration: 30 g
Operating Temperature: -25 to 55 °C
Dimensions (H x L x W): 75mm x 80mm x 72mm
Weight: 0.48 kg

Key Features

Short body design for space-saving installation.
Overcurrent protection with a rated current of 20A.
Residual current protection with a leakage current of 30mA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Machinery and equipment protection

Standards & Compliance

Complies with AS/NZS 61009 for residual current devices.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable electrical protection.

Non-Returnable & Non-Cancellable

M6RCBF2030A-AU-RCBO-6kA-3P-and-N-72mm-Datasheet.pdf (M6RCBF2030A-AU-RCBO-6kA-3P-and-N-72mm-Datasheet.pdf, 469 Kb) [Download]
