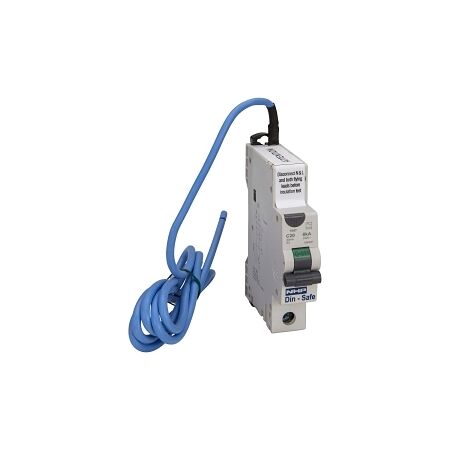

Residual Current Device 6kA 25A | 30mA Type A | Compact 18mm by NHP
Residual current device with 6kA short circuit capacity and 25A rated current—ideal for residential and commercial safety. Built for compact spaces, with 30mA leakage protection and Type A tripping curve.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP DIN-T Residual Current Device Short Body w/ Overcurrent 6kA 25A 1Pole and N C Curve 30mA Type A
Brand: NHP
SKU: DSRCBS2530CAN
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 25 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Degree of Protection: IP20
- Electrical Life: 10,000 cycles
- Mechanical Life: 2,000 cycles
- Operating Temperature: -5 to 60 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.22 kg
Key Features
- Compact 18mm design for space-saving installation.
- Rated current of 25A and leakage current of 30mA.
- 6kA short circuit breaking capacity.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and light industrial applications
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications, ensuring electrical safety.
