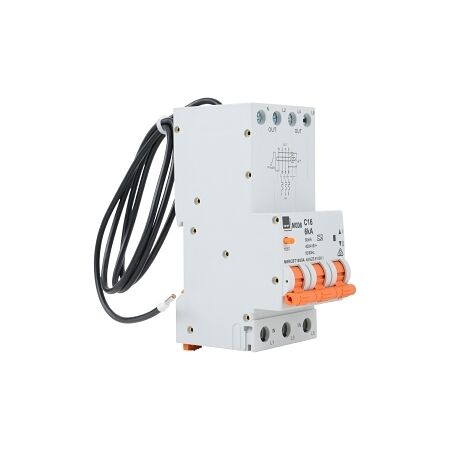

Residual Current Device 6kA 32A | 3PN C Curve | 30mA Type A by NHP
Residual current device with 6kA breaking capacity and 32A rated current—ideal for residential and commercial safety. Built for easy DIN rail installation, with 30mA leakage protection and C curve tripping.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 32 A
- Rated Voltage: 415 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Trip Curve: C
- Rated Impulse Withstand Voltage: 4 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Degree of Protection: IP20
- Mounting Method: DIN rail (top hat rail) 35 mm
- Dimensions (H x L x W): 117.5mm x 71.6mm x 54mm
- Weight: 0.55 kg
Key Features
- 6kA short circuit breaking capacity
- 30mA leakage current rating
- C curve tripping characteristic
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring electrical safety devices
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Helps prevent electrical hazards, contributing to overall safety and compliance.
Warranty Information
Standard warranty applies.
Available Now
The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
Non-Returnable & Non-Cancellable
