Residual Current Device 6kA 40A | 30mA Type A | DIN Rail Mount by NHP
Residual current device with 6kA short circuit capacity and 40A rated current—ideal for residential and commercial safety. Built for easy installation with DIN rail mounting, offering 30mA leakage protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

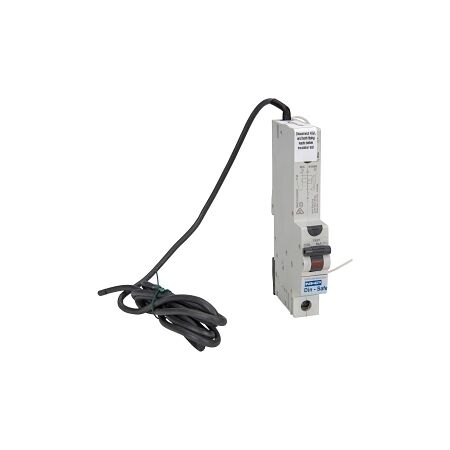

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 6kA 40A 1Pole and N C Curve 30mA Type A
Brand: NHP
SKU: DSRCBH64030A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 40 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 265 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Number of Protected Poles: 1
- Degree of Protection: IP20
- Operating Temperature: -5-55 °C
- Dimensions (H x L x W): 125mm x 76mm x 18mm
- Weight: 0.35 kg
Key Features
- 6kA short circuit breaking capacity
- 40A rated current
- 30mA leakage current type A
- C curve tripping characteristic
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any indoor location requiring electrical safety devices
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Helps prevent electrical hazards, contributing to overall safety and energy efficiency.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Long Body w/ Overcurrent 6kA 40A 1Pole and N C Curve 30mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
