Home/Electrical/Switchgear/MCB/RCD RCBO Combos/Residual Current Device 6kA 63A | 3PN C Curve | 30mA Type A by NHP

Trade Discount 25%

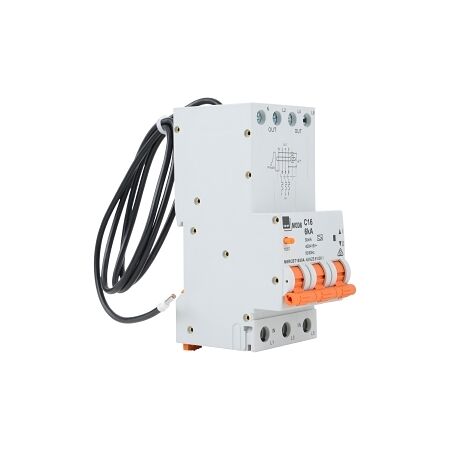

NHP MOD6 Residual Current Device - Long body w/ Overcurrent 6kA 63A 3PN C Curve 30mA Type A 54mm

Residual Current Device 6kA 63A | 3PN C Curve | 30mA Type A by NHP

BRAND: NHP

SKU: M6RCBT6330A

$234.90 List price: $311.90

+ −

30 Days Return Delivery Options

Residual current device with 6kA short circuit capacity and 63A rated current—ideal for residential and commercial safety. Built for easy DIN rail mounting, with 30mA residual current for enhanced protection.

Description
Attachments

Product Name/Title: NHP MOD6 Residual Current Device - Long body w/ Overcurrent 6kA 63A 3PN C Curve 30mA Type A 54mm

Brand: NHP

SKU: M6RCBT6330A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 63 A
Rated Voltage: 415 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 6 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 300 ms
Min Service Voltage: 204 V
Max Operating Voltage: 457 V
Number of Poles: 4
Degree of Protection: IP20
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Operating Temperature: -5 to 40 °C
Dimensions (H x L x W): 117.5mm x 71.6mm x 54mm
Weight: 0.55 kg

Key Features

6kA short circuit breaking capacity
C curve tripping characteristic for general applications
30mA residual current for personal protection
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small commercial installations
Commercial: Retail and office environments requiring electrical safety

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

Non-Returnable & Non-Cancellable

M6RCBT6330A-AU-RCBO-6kA-3P-54mm-with-Pigtail-Datasheet.pdf (M6RCBT6330A-AU-RCBO-6kA-3P-54mm-with-Pigtail-Datasheet.pdf, 577 Kb) [Download]
