Residual Current Device 6kA 6A | 30mA Type A | Compact Design by NHP
Residual current device with 6kA breaking capacity and 6A rated current—ideal for residential and commercial safety. Built for fast tripping with 30mA leakage current and compact design for space-saving installation.
Sign in
Please login to continue to your account.

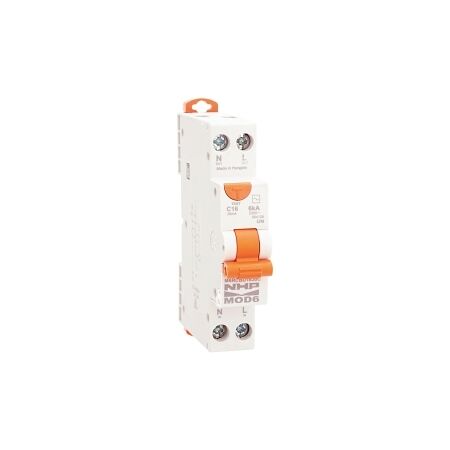

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 6A 1PN C Curve 30mA Type A 2 Screw
Brand: NHP
SKU: M6RCBD0630CAN
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
- Rated Current: 6 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Degree of Protection: IP20
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.13 kg
- Compact design with a short body for space-saving installation.
- Overcurrent protection with a rated current of 6A and leakage current of 30mA.
- Fast tripping time of 40 ms for enhanced safety.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring electrical safety
- Complies with AS/NZS 61009 for residual current devices.
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
1 year warranty against manufacturing defects.
The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
