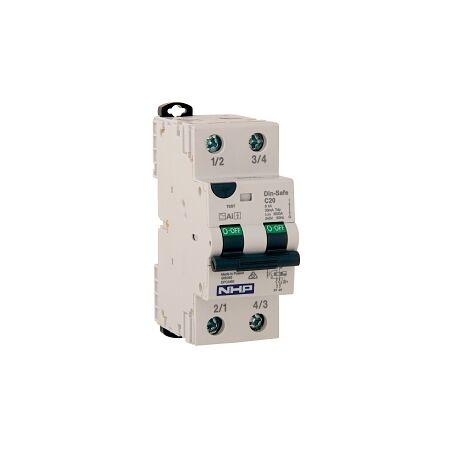

NHP DIN-T Residual Current Device Short Body w/ Overcurrent 6kA 6A 1Pole and N C Curve 30mA Type AI

Residual Current Device 6kA 6A | 30mA Type AI | Compact DIN Rail by NHP

BRAND: NHP

SKU: DSRCB0630AI

$191.20 List price: $253.90

+ −

30 Days Return Delivery Options

Residual current device with 6kA short circuit capacity and 30mA residual current rating—ideal for residential and commercial electrical safety. Built for enhanced protection, with compact design for DIN rail mounting.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device Short Body w/ Overcurrent 6kA 6A 1Pole and N C Curve 30mA Type AI

Brand: NHP

SKU: DSRCB0630AI

Alternatively Known As: RCD, Residual Current Device, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 6 A
Rated Voltage: 240 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Trip Curve: C
Rated Impulse Withstand Voltage: 6 kV
Tripping Time: 40 ms
Min Service Voltage: 117 V
Max Operating Voltage: 255 V
Rated Residual Make Break Capacity: 6000 A
Number of Poles: 2
Degree of Protection: IP20
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Operating Temperature: -5 to 55 °C
Dimensions (H x L x W): 86mm x 68mm x 36mm
Weight: 0.25 kg

Key Features

6kA short circuit breaking capacity
30mA residual current rating for enhanced safety
Compact design for DIN rail mounting

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring electrical safety

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications requiring electrical safety.

DSRCB0630AI-AU-RCBO-6kA-1P-and-N-36mm-Datasheet.pdf (DSRCB0630AI-AU-RCBO-6kA-1P-and-N-36mm-Datasheet.pdf, 309 Kb) [Download]
