Residual Current Device Add-On Module | 3 Pole 63A 30mA | Type A Clip-On by NHP
Residual current device add-on module with 3 pole 63A and 30mA Type A—ideal for residential and commercial safety. Built for fast tripping at 40 ms, with IP20 rating for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

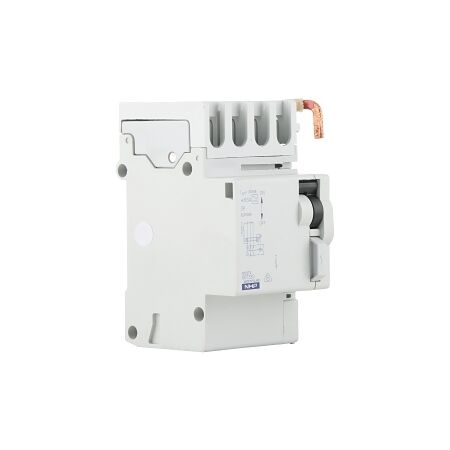

Product Name/Title: NHP DIN-T DINSAFE Residual Current Devices Add on module Clip On 3Pole 63A 30mA Type A
Brand: NHP
SKU: DSRCM63303PA
Alternatively Known As: RCD Module, Residual Current Device, Type A RCD
Technical Specifications
- Rated Current: 63 A
- Rated Voltage: 415 V
- Rated Leakage Current: 30 mA
- Tripping Time: 40 ms
- Rated Fault Current: 0-10000 A
- Frequency: 50/60 Hz
- Leakage Current Type: A
- Rated Insulation Voltage: 500 V
- Rated Impulse Withstand Voltage: 6 kV
- Number of Poles: 3
- Electrical Life at Un in Service Cycles: 10000 cycles
- Degree of Protection: IP20
- Mechanical Life Service Cycles: 20000 cycles
- Max Shock Duration: 5 ms
- Max Shock Acceleration: 40 g
- Max Vibration Duration: 30 min
- Max Vibration Acceleration: 5 m/s²
- Max Vibration Frequency Operational: 80 Hz
- Operating Temperature: -5-60 °C
- Dimensions (H x L x W): 86mm x 76mm x 54mm
- Weight: 0.34 kg
Key Features
- Type A RCD for protection against earth faults.
- Fast tripping time of 40 ms for enhanced safety.
- IP20 rated for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T DINSAFE Residual Current Device Add-on Module is available now for immediate purchase. Ideal for enhancing electrical safety in residential and commercial settings.
