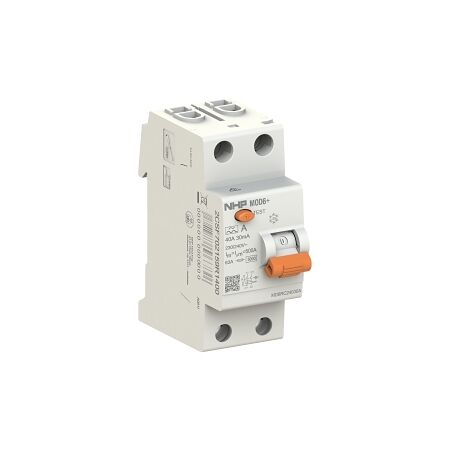

NHP MOD6+ Residual Current Device RCCB 1 Pole and Switched N 40A 30mA Type A

Residual Current Device RCCB 1 Pole | 40A 30mA Type A | DIN Rail Mount by NHP

BRAND: NHP

SKU: MD6RC24030A

$37.60 List price: $49.90

+ −

30 Days Return Delivery Options

Residual current device RCCB with 40A current and 30mA leakage—ideal for residential and commercial safety. Built for enhanced protection, with easy DIN rail mounting and Type A leakage detection.

Description
Attachments

Product Name/Title: NHP MOD6+ Residual Current Device RCCB 1 Pole and Switched N 40A 30mA Type A

Brand: NHP

SKU: MD6RC24030A

Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD

Technical Specifications

Number of Poles: 2
Voltage Type: AC
Frequency: 50/60 Hz
Rated Current: 40 A
Leakage Current Type: A
Rated Leakage Current: 30 mA
Min Service Voltage: 110 V
Max Rated Operation Voltage (UE AC): 456 V
Rated Insulation Voltage (UI): 500 V
Rated Impulse Withstand Voltage (Uimp): 4 kV
Rated Fault Current: 6000 A
Electrical Life at Un in Service Cycles: 10000 cycles
Surge Current Capacity: 0.25 kA
Degree of Protection: IP40
Connectable Conductor Cross Section (Solid Core): 1-25 mm²
Connectable Conductor Cross Section (Multi-Wired): 1-16 mm²
Operating Temperature: -5-70 °C
Storage Temperature: -40-70 °C
Pollution Degree: 2
Dimensions (H x L x W): 88mm x 75mm x 35mm
Weight: 0.2 kg

Key Features

Type A RCCB with 30mA leakage current rating for enhanced safety.
DIN rail mounting for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
General: Any electrical installation requiring residual current protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP MOD6+ Residual Current Device RCCB 1 Pole and Switched N 40A 30mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

MD6RC24030A-AU-RCCB-2P-SN-30mA-Type-A-Datasheet.pdf (MD6RC24030A-AU-RCCB-2P-SN-30mA-Type-A-Datasheet.pdf, 284 Kb) [Download]
