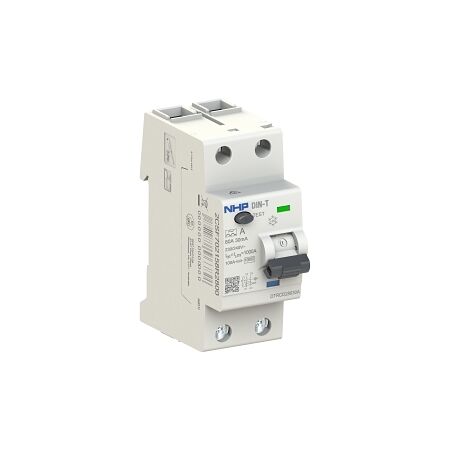

NHP DIN-T Residual Current Device RCCB 1 Pole and Switched Neutral 80A 30mA Type A

Residual Current Device RCCB 1 Pole | 80A 30mA | DIN Rail Mount | Type A by NHP

BRAND: NHP

SKU: DTRCD28030A

$543.50 List price: $721.70

+ −

30 Days Return Delivery Options

Residual current device RCCB with 1 pole and switched neutral, rated at 80A and 30mA—ideal for residential, commercial, and industrial safety. Built for enhanced protection, with easy DIN rail mounting.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device RCCB 1 Pole and Switched Neutral 80A 30mA Type A

Brand: NHP

SKU: DTRCD28030A

Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD, Type A RCCB

Technical Specifications

Number of Poles: 2
Voltage Type: AC
Frequency: 50/60 Hz
Rated Current: 80 A
Leakage Current Type: A
Rated Leakage Current: 30 mA
Min Service Voltage: 170 V
Max Rated Operation Voltage: 264 V
Rated Insulation Voltage: 500 V
Rated Impulse Withstand Voltage: 4 kV
Rated Fault Current: 10000 A
Electrical Life: 10000 cycles
Surge Current Capacity: 0.25 kA
Degree of Protection: IP40
Connectable Conductor Cross Section (Solid Core): 1-35 mm²
Connectable Conductor Cross Section (Multi-Wired): 1-25 mm²
Operating Temperature: 70 °C
Ambient Temperature: -25-70 °C
Dimensions (H x L x W): 85mm x 75mm x 35mm
Weight: 0.2 kg

Key Features

1 Pole with Switched Neutral for enhanced safety.
Rated current of 80A and leakage current of 30mA.
DIN rail mounting for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Machinery and equipment protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical safety standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device RCCB 1 Pole and Switched Neutral 80A 30mA Type A is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

Non-Returnable & Non-Cancellable

DTRCD28030A-AU-RCCB-2P-SN-30mA-Type-A-Datasheet.pdf (DTRCD28030A-AU-RCCB-2P-SN-30mA-Type-A-Datasheet.pdf, 212 Kb) [Download]
