Home/Electrical/Switchgear/Residual Current Devices/Residual Current Device RCCB 4 Pole | 40A 30mA | DIN Rail Mount | Type A by NHP

Trade Discount 25%

NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 40A 30mA Type A I

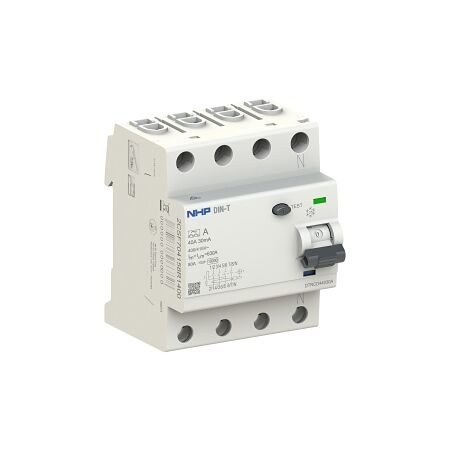

Residual Current Device RCCB 4 Pole | 40A 30mA | DIN Rail Mount | Type A by NHP

BRAND: NHP

SKU: DTRCD44030AI

$642.10 List price: $852.70

+ −

30 Days Return Delivery Options

Residual current device RCCB with 4 pole design and switched neutral—ideal for residential and commercial safety. Built for enhanced protection, with 40A current and 30mA leakage, easy DIN rail installation.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 40A 30mA Type A I

Brand: NHP

SKU: DTRCD44030AI

Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD

Technical Specifications

Number of Poles: 4
Voltage Type: AC
Frequency: 50/60 Hz
Rated Current: 40 A
Rated Leakage Current: 30 mA
Min Service Voltage: 230 V
Max Rated Operation Voltage: 456 V
Rated Insulation Voltage: 500 V
Rated Impulse Withstand Voltage: 4 kV
Rated Fault Current: 10000 A
Electrical Life: 10000 cycles
Surge Current Capacity: 3 kA
Degree of Protection: IP40
Connectable Conductor Cross Section: 1-25 mm² (solid core), 1-16 mm² (multi-wired)
Operating Temperature: 70 °C
Ambient Temperature: -25 to 70 °C
Dimensions (H x L x W): 85mm x 75mm x 70mm
Weight: 0.38 kg

Key Features

4 Pole design with switched neutral for enhanced safety.
Rated current of 40A and leakage current of 30mA.
DIN rail mounting for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 40A 30mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DTRCD44030AI-AU-RCCB-4P-SN-30mA-Type-AI-Datasheet.pdf (DTRCD44030AI-AU-RCCB-4P-SN-30mA-Type-AI-Datasheet.pdf, 231 Kb) [Download]
