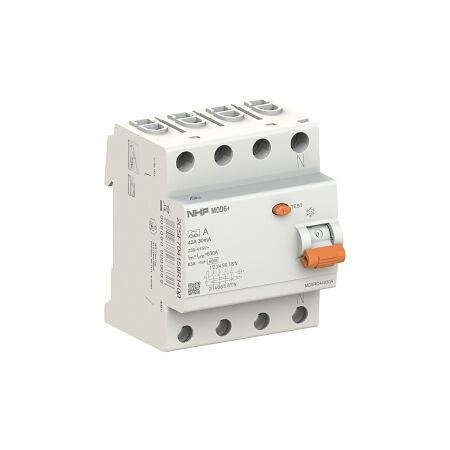

Residual Current Device RCCB 4 Pole | 40A 30mA | Type A | DIN Rail by NHP
Residual current device RCCB with 4 pole design and Type A leakage protection—ideal for residential and commercial safety. Built for easy installation with DIN rail mounting, offering 40A current and 30mA leakage protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP MOD6+ Residual Current Device RCCB 3 Pole and Switched N 40A 30mA Type A
Brand: NHP
SKU: MD6RC44030A
Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD
Technical Specifications
- Number of Poles: 4
- Voltage Type: AC
- Frequency: 50/60 Hz
- Rated Current: 40 A
- Rated Leakage Current: 30 mA
- Min Service Voltage: 230 V
- Max Rated Operation Voltage: 456 V
- Rated Insulation Voltage: 500 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Fault Current: 6000 A
- Degree of Protection: IP40
- Operating Temperature: -5 to 70 °C
- Storage Temperature: -40 to 70 °C
- Dimensions (H x L x W): 88mm x 75mm x 70mm
- Weight: 0.36 kg
Key Features
- 4 Pole design with Type A leakage current protection.
- Rated current of 40A and leakage current of 30mA.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP MOD6+ Residual Current Device RCCB 3 Pole and Switched N 40A 30mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
