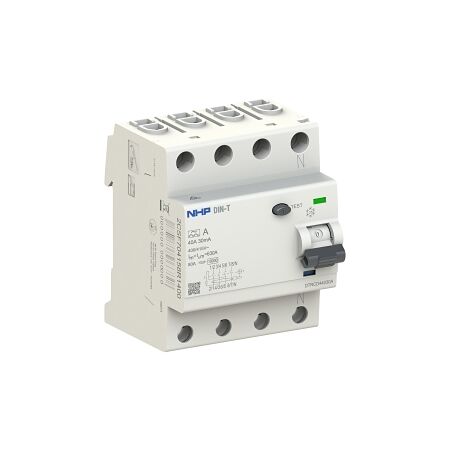

NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 63A 300mA Type S

Residual Current Device RCCB 4 Pole | 63A 300mA | DIN Rail Mount by NHP

BRAND: NHP

SKU: DTRCD463300S

$785.10 List price: $1,042.50

+ −

30 Days Return Delivery Options

Residual current device RCCB with 4 poles and switched neutral, rated at 63A and 300mA—ideal for residential and commercial safety. Built for enhanced protection, with easy DIN rail mounting.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 63A 300mA Type S

Brand: NHP

SKU: DTRCD463300S

Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD, Type S RCCB

Technical Specifications

Number of Poles: 4
Voltage Type: AC
Frequency: 50/60 Hz
Rated Current: 63 A
Rated Leakage Current: 300 mA
Min Service Voltage: 230 V
Max Rated Operation Voltage: 456 V
Rated Insulation Voltage: 500 V
Rated Impulse Withstand Voltage: 4 kV
Rated Fault Current: 10000 A
Surge Current Capacity: 5 kA
Degree of Protection: IP40
Connectable Conductor Cross Section (Solid Core): 1-25 mm²
Connectable Conductor Cross Section (Multi-Wired): 1-16 mm²
Operating Temperature: 70 °C
Ambient Temperature During Operating: -25-70 °C
Dimensions (H x L x W): 85mm x 75mm x 70mm
Weight: 0.38 kg

Key Features

4 poles with switched neutral for enhanced safety.
Rated current of 63A and leakage current of 300mA.
DIN rail mounting for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 63A 300mA Type S is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DTRCD463300S-AU-RCCB-4P-SN-300mA-Type-S-Datasheet.pdf (DTRCD463300S-AU-RCCB-4P-SN-300mA-Type-S-Datasheet.pdf, 231 Kb) [Download]
