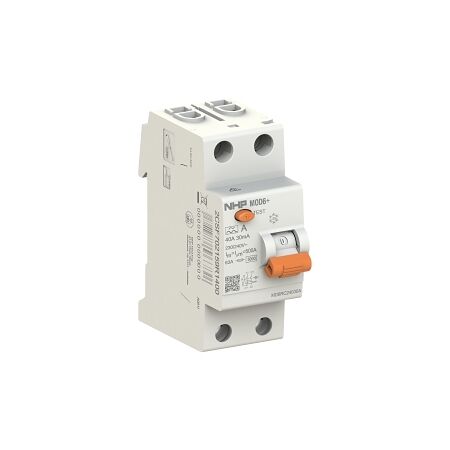

NHP MOD6+ Residual Current Device RCCB 1 Pole and Switched N 63A 30mA Type A

Residual Current Device RCCB 63A | 30mA Type A | DIN Rail Mount by NHP

BRAND: NHP

SKU: MD6RC26330A

$52.30 List price: $69.50

+ −

30 Days Return Delivery Options

Residual current device RCCB with 63A rated current and 30mA leakage protection—ideal for residential and commercial safety. Built for easy installation with DIN rail mounting, enhancing electrical safety and reducing fire risks.

Description
Attachments

Product Name/Title: NHP MOD6+ Residual Current Device RCCB 1 Pole and Switched N 63A 30mA Type A

Brand: NHP

SKU: MD6RC26330A

Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD

Technical Specifications

Number of Poles: 2
Voltage Type: AC
Frequency: 50/60 Hz
Rated Current: 63 A
Rated Leakage Current: 30 mA
Min Service Voltage: 110 V
Max Rated Operation Voltage: 456 V
Rated Insulation Voltage: 500 V
Rated Impulse Withstand Voltage: 4 kV
Rated Fault Current: 6000 A
Electrical Life: 10000 cycles
Surge Current Capacity: 0.25 kA
Degree of Protection: IP40
Operating Temperature: -5 to 70 °C
Storage Temperature: -40 to 70 °C
Dimensions (H x L x W): 88mm x 75mm x 35mm
Weight: 0.2 kg

Key Features

Type A RCCB with 30mA leakage current protection.
Rated current of 63A suitable for various applications.
DIN rail mounting for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
General: Any electrical installation requiring residual current protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP MOD6+ Residual Current Device RCCB 1 Pole and Switched N 63A 30mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety.

MD6RC26330A-AU-RCCB-2P-SN-30mA-Type-A-Datasheet.pdf (MD6RC26330A-AU-RCCB-2P-SN-30mA-Type-A-Datasheet.pdf, 284 Kb) [Download]
