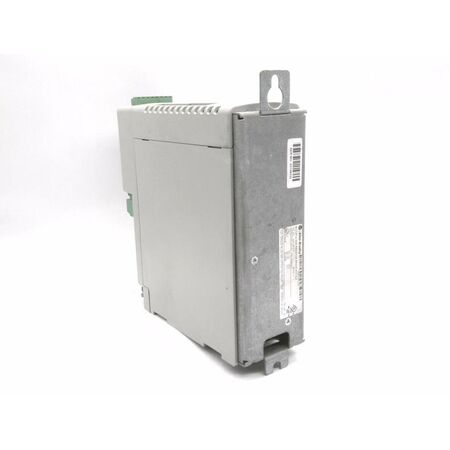

Resistive Brake Module 600 VAC | 23 AMP Input/Output | 32 Ohms Resistance | by Allen-Bradley
The Resistive Brake Module by Allen-Bradley is designed for high power applications, featuring a robust input and output rating of 600 VAC and 23 AMP. With a resistance of 32 Ohms, it effectively dissipates braking energy, making it ideal for industrial motor control systems and automation equipment. Ensure professional installation for optimal performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Input Voltage: 600 VAC
- Input Current: 23 AMP
- Output Voltage: 600 VAC
- Output Current: 23 AMP
- Resistance: 32 Ohms
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.5 kg
Key Features
- Resistive brake module designed for high power applications
- Input and output rated at 600 VAC and 23 AMP
- 32 Ohms resistance for effective braking
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with industrial motor control equipment to ensure safety and compliance.
Applications
- Industrial motor control systems
- Variable frequency drives requiring braking modules
- Automation and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps improve energy efficiency by safely dissipating braking energy
- Reduces wear on mechanical braking components
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 2090XB3332 Resistive Brake Module is available now for immediate purchase. Ideal for industrial motor control and automation applications.
