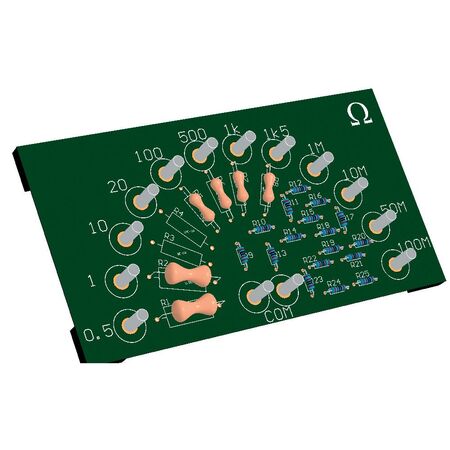

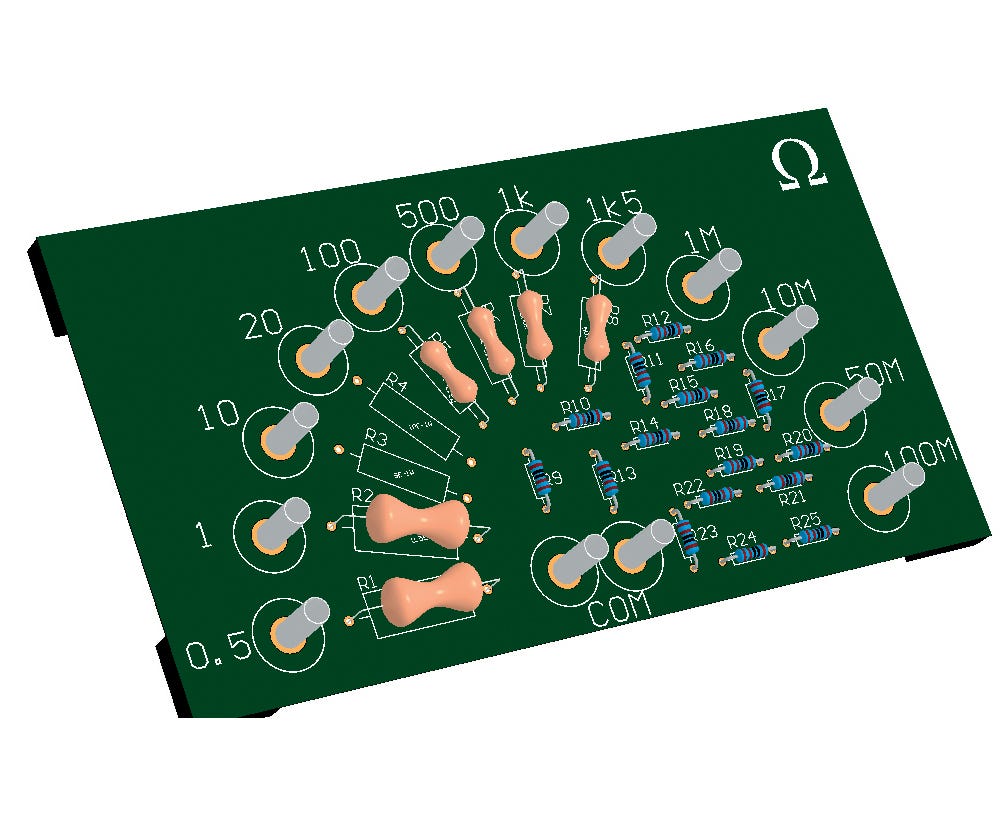

Resistor PCB | 0.5 Ohm to 100 Mega Ohm Range | 4mm Banana Plug Sockets | Accurate Resistor Values | @EA of 1 | by Cabac
The Resistor PCB is designed for testing resistance ranges from 0.5 Ohm to 100 Mega Ohm, featuring 4mm banana plug sockets for easy connections. Ideal for educational, laboratory, and field testing applications, this board provides accurate resistor values for reliable testing, making it perfect for training personnel on electrical resistance concepts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resistance range: 0.5 Ohm to 100 Mega Ohm
- 4mm banana plug sockets for easy connection
- Accurate resistor values for reliable testing
- Material: Printed circuit board with mounted resistors
- Dimensions (H x L x W): 100mm x 10mm x 150mm
- Weight: 0.2 kg
Key Features
- Printed circuit board with resistors ranging from 0.5 Ohm to 100 Mega Ohm
- 4mm banana plug sockets for common and various resistances
- Accurate resistors for each resistance circuit
- Suitable for both field and laboratory testing
Professional Installation Requirements
- No professional installation required; suitable for use by trained personnel and technicians.
Applications
- Testing resistance ranges on meters
- Training personnel on electrical resistance
- Demonstrating electrical resistance concepts
- Testing insulation testers in field or laboratory environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reusable testing board reduces the need for multiple individual resistors, minimizing electronic waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac TR-PCB Resistor PCB is available now for immediate purchase. Ideal for educational, laboratory, and field testing applications.
